Front Interior Lamp (Convertible)

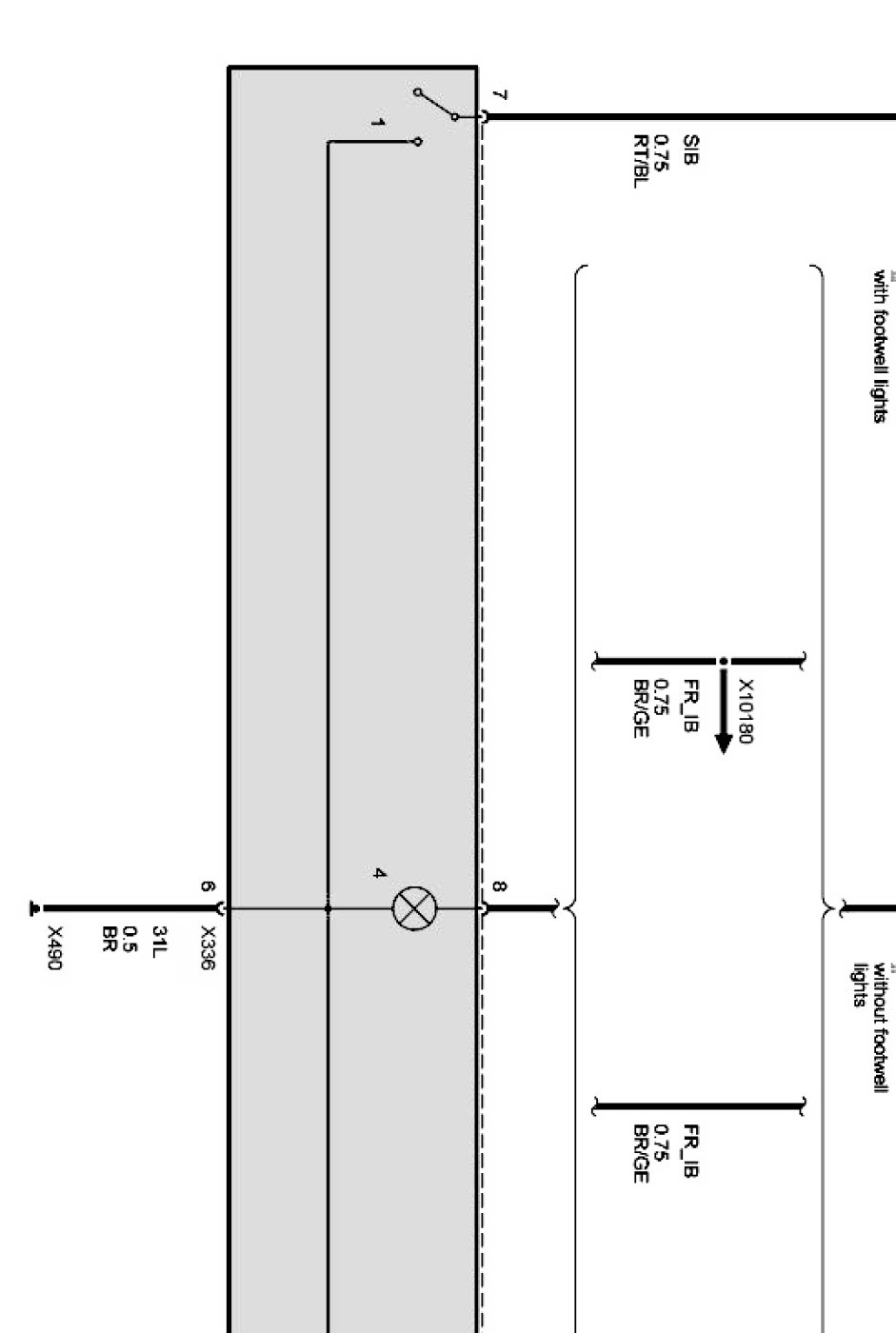

Front interior lamp Part 1:

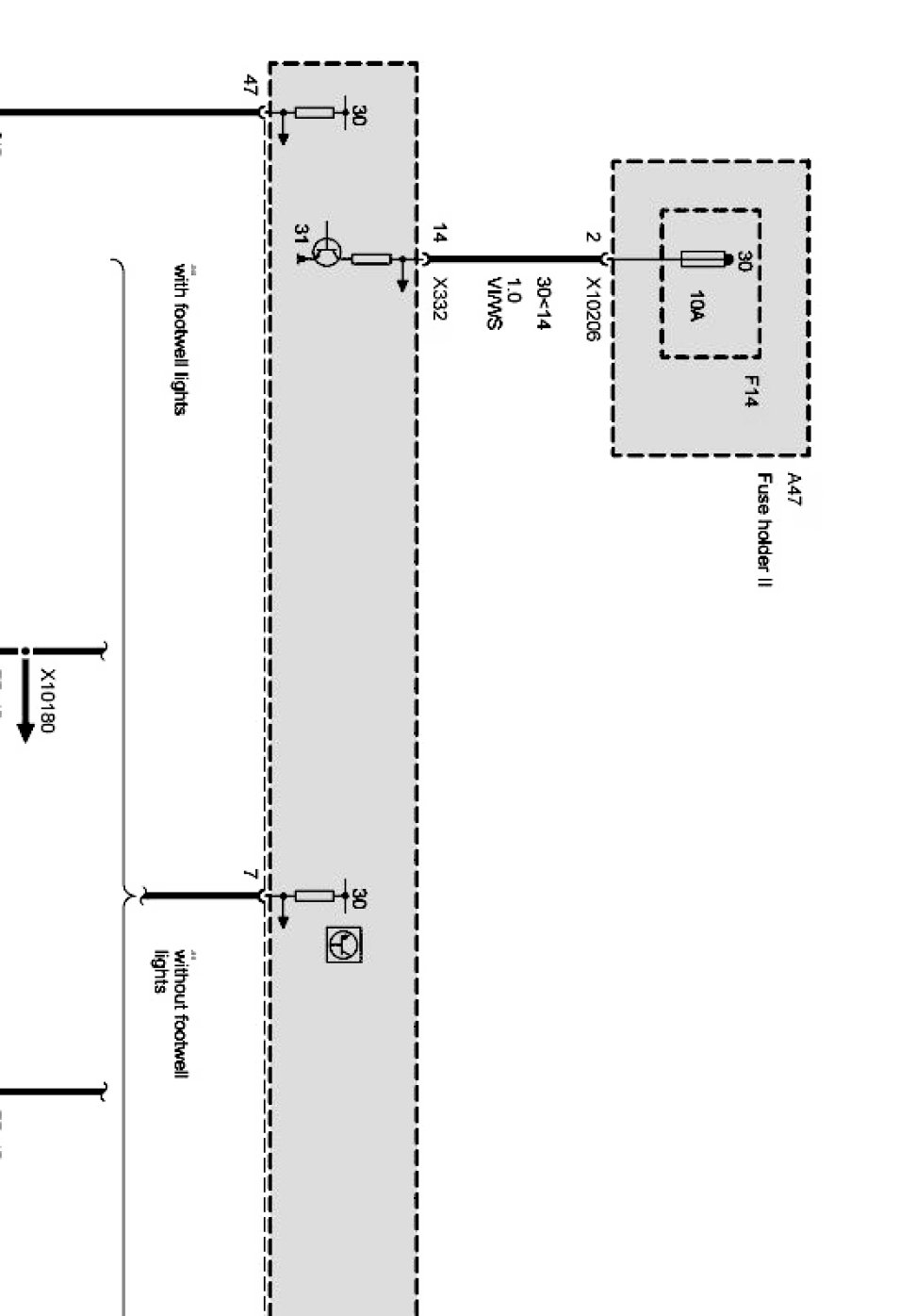

Front interior lamp Part 2:

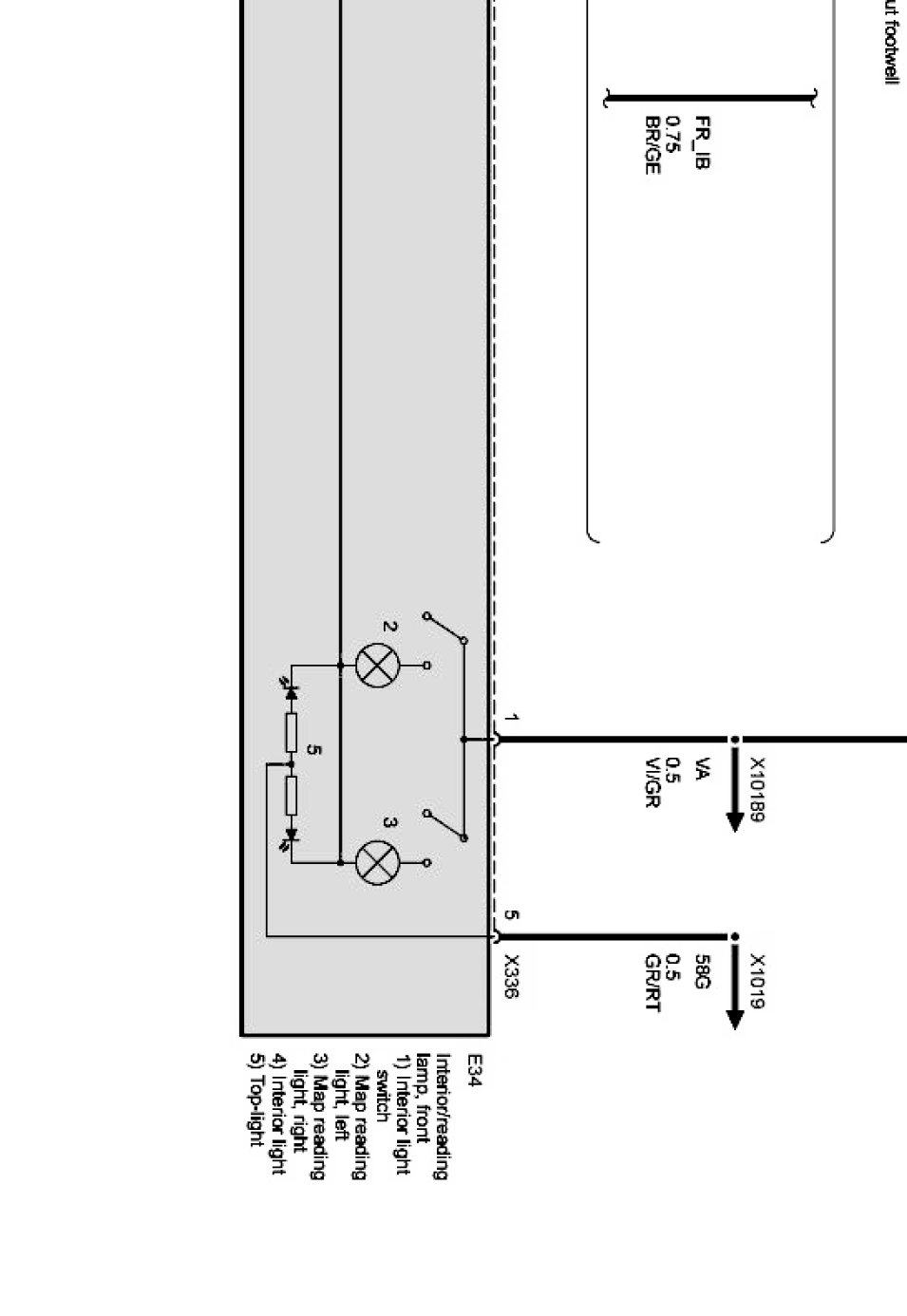

Front interior lamp Part 3:

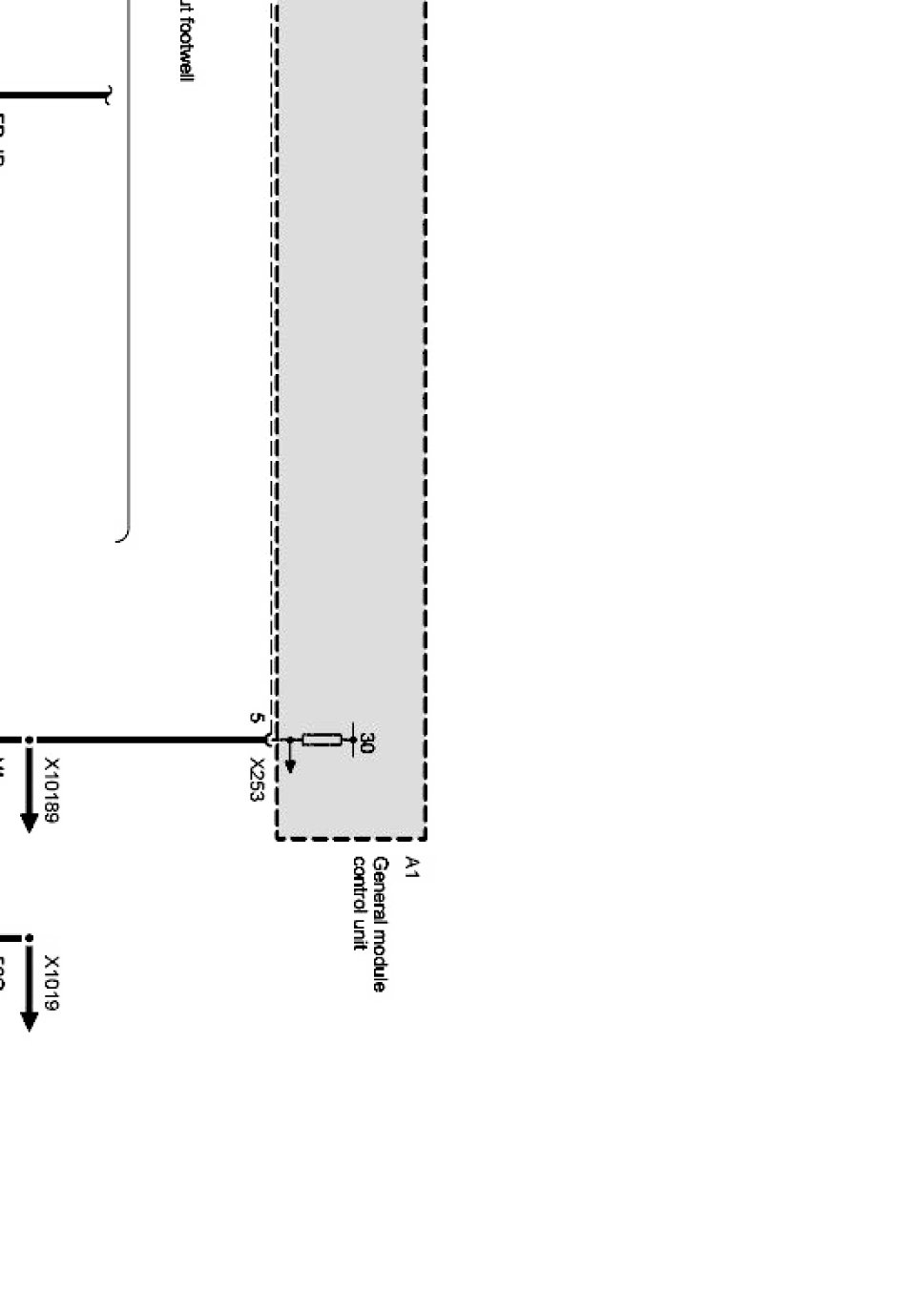

Front interior lamp Part 4:
