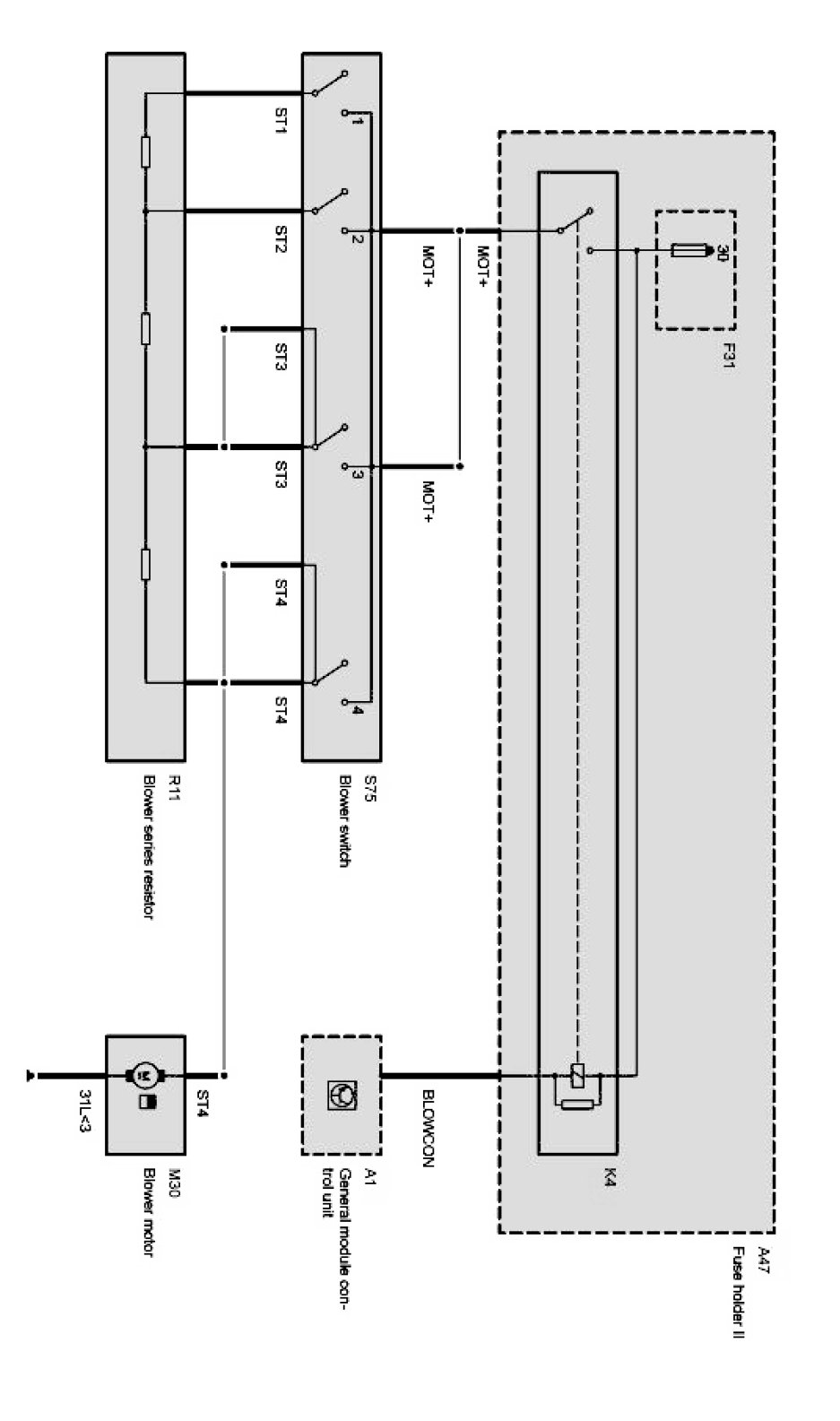

Heating and Air Conditioning Functions (IHS Integrated Heating Control As of 03/03)

Heating and air conditioning functions:
