Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Heating and Air Conditioning Functions >> Heated Windshield and Rear Window >> Heated Washer Jets >> Washer Nozzle Heating (Up to 09/05)

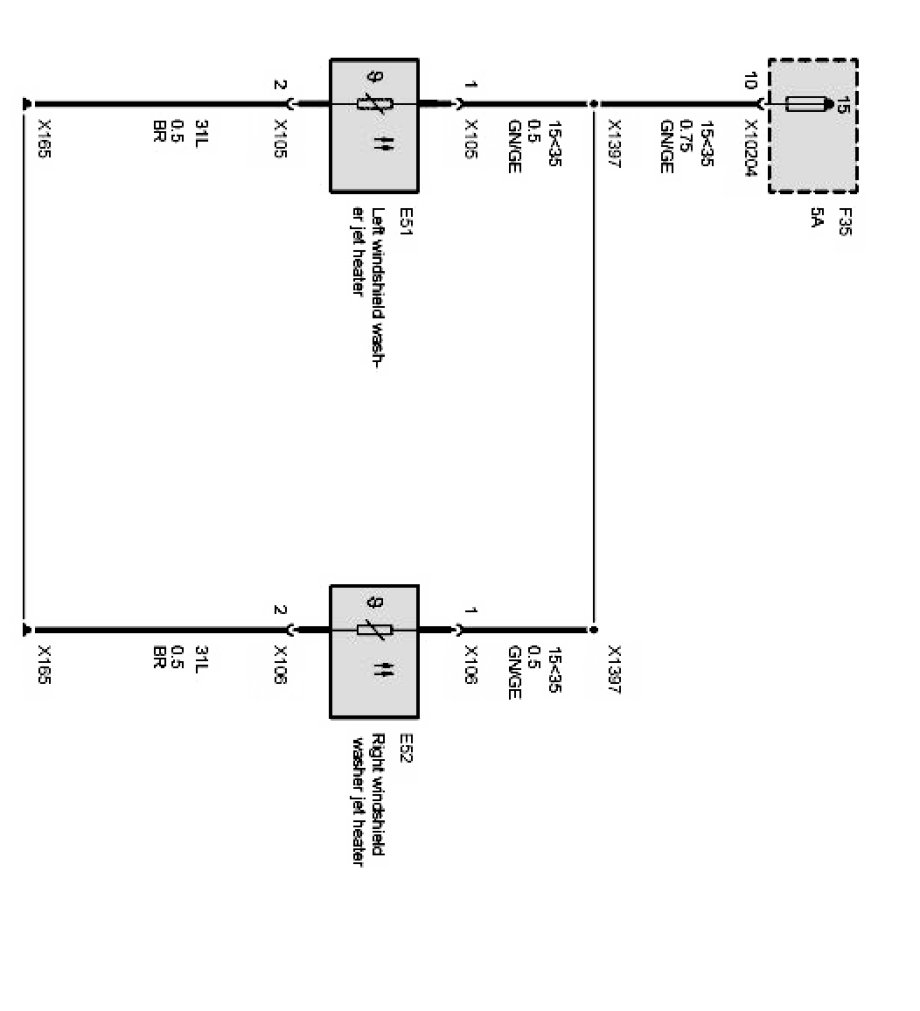

Washer Nozzle Heating (Up to 09/05)

Washer nozzle heating:
