Fan Control ((IHKA Up to 03/02) or (IHKA As of 03/03))

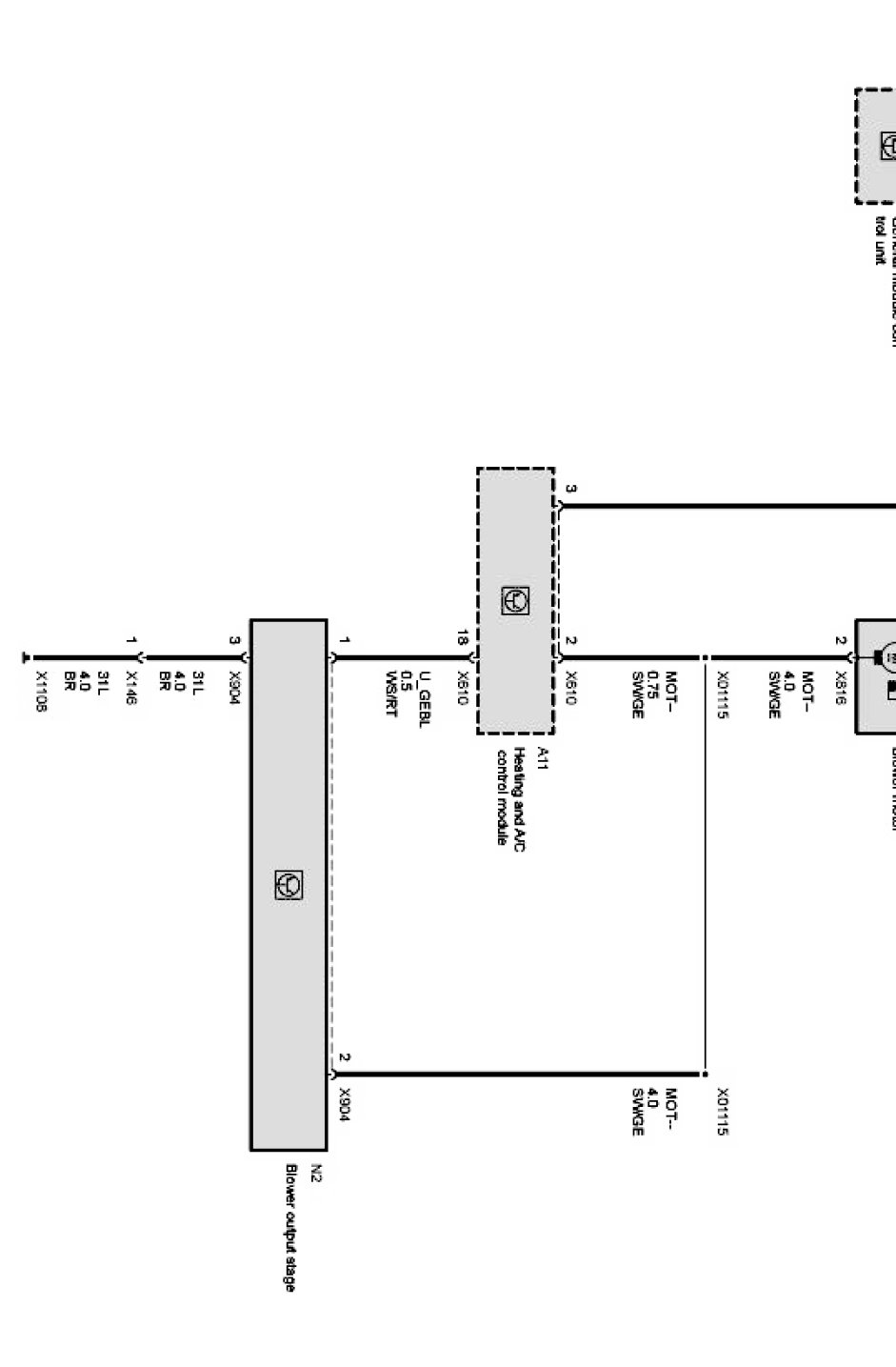

Blower control Part 1:

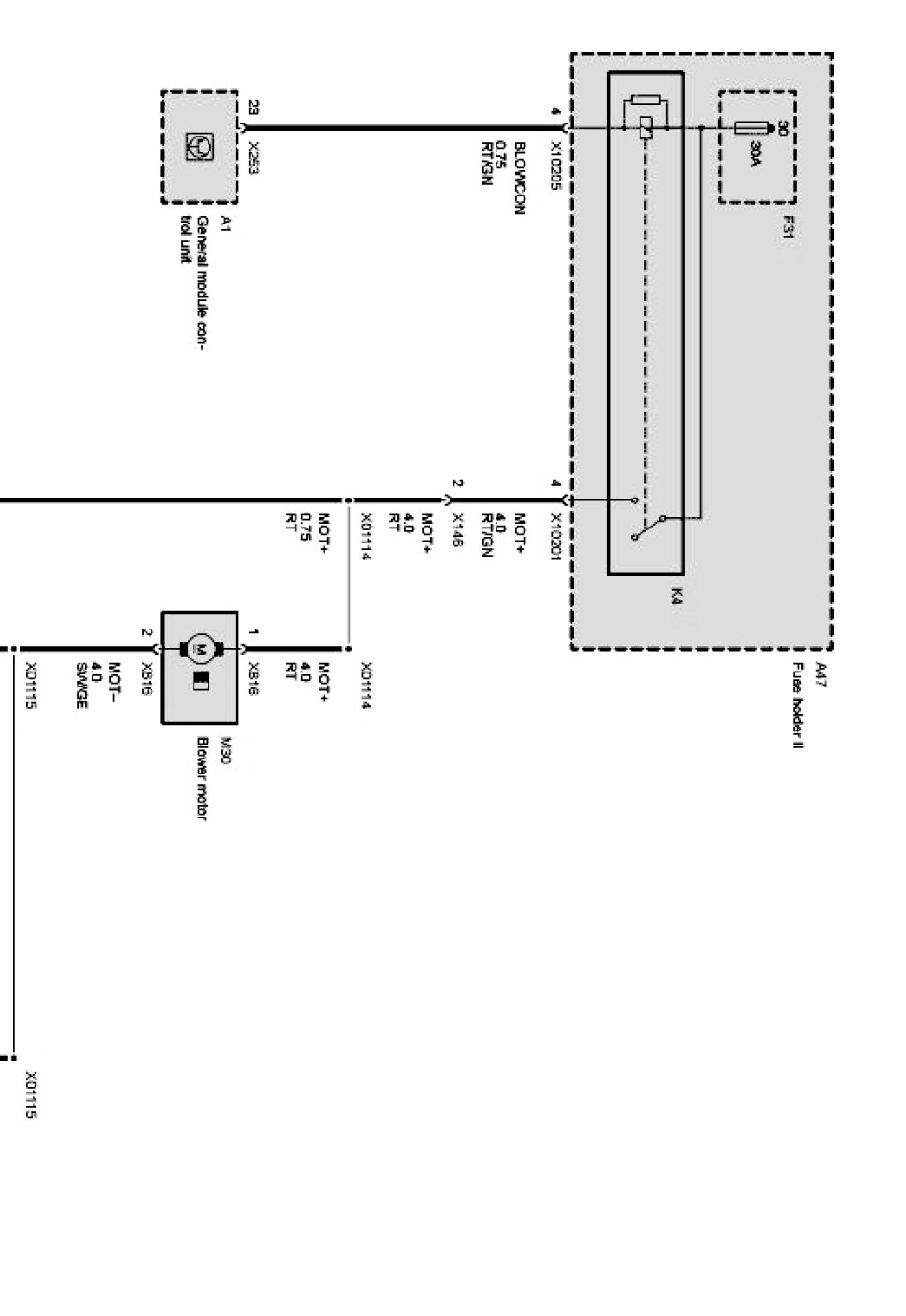

Blower control Part 2:
