X610 Adapter 614, Storage Location C106 (IHKA Automatic Heating/A/C System)
>>
A11 Heating and A/C Control Module (As of 09/05)
A11 Heating and A/C Control Module (As of 09/05)
Connector View
X610 Component connector (26-pin, blue)
Pin Assignment

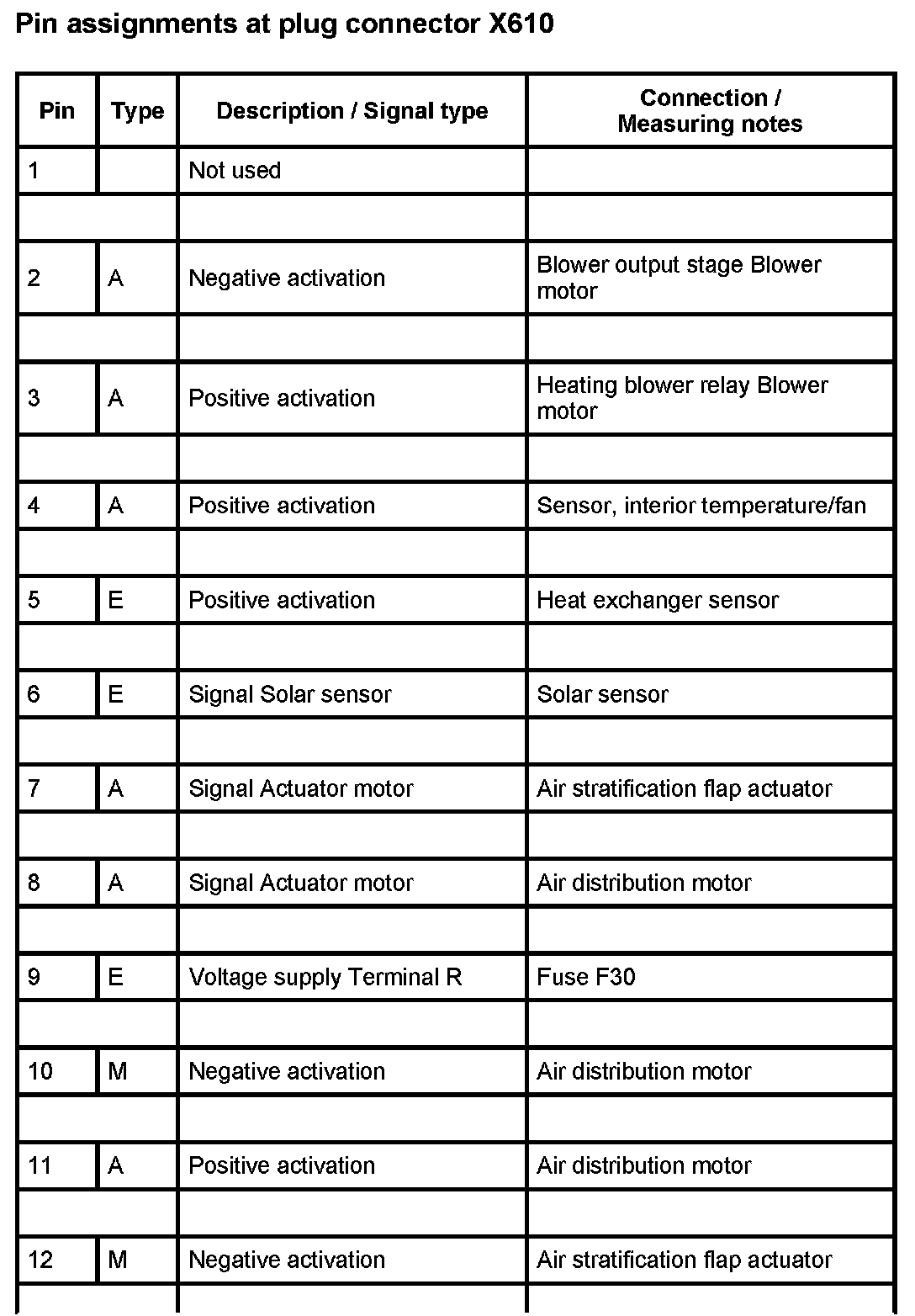

X610 Part 1:

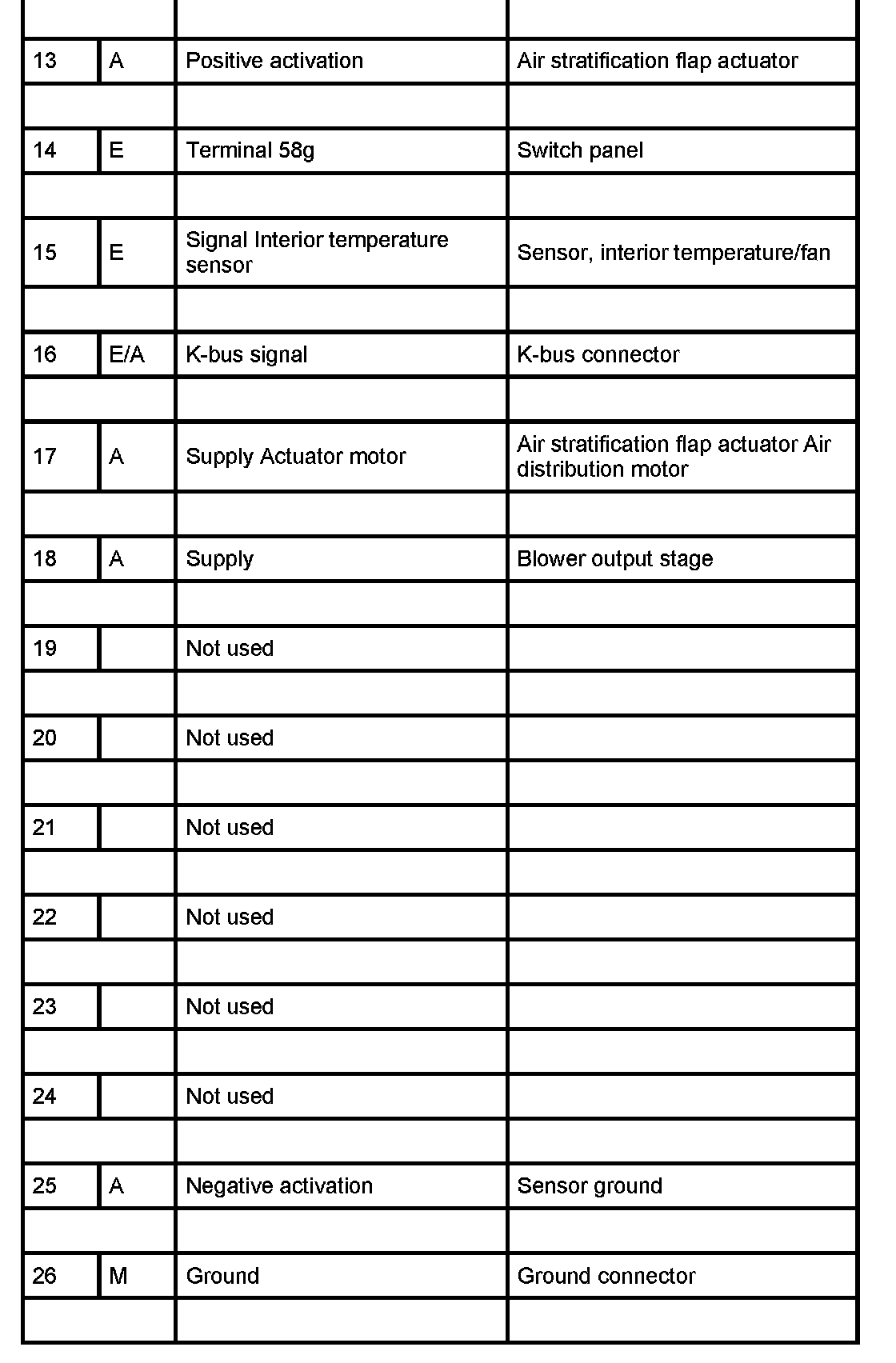

X610 Part 2:
