A1 General Module Control Unit As of 01/05 Up to 09/05
A1 General Module Control Unit As of 01/05 Up to 09/05
Connector View
X332 Component Connector (20-Pin, Black)
Pin Assignment

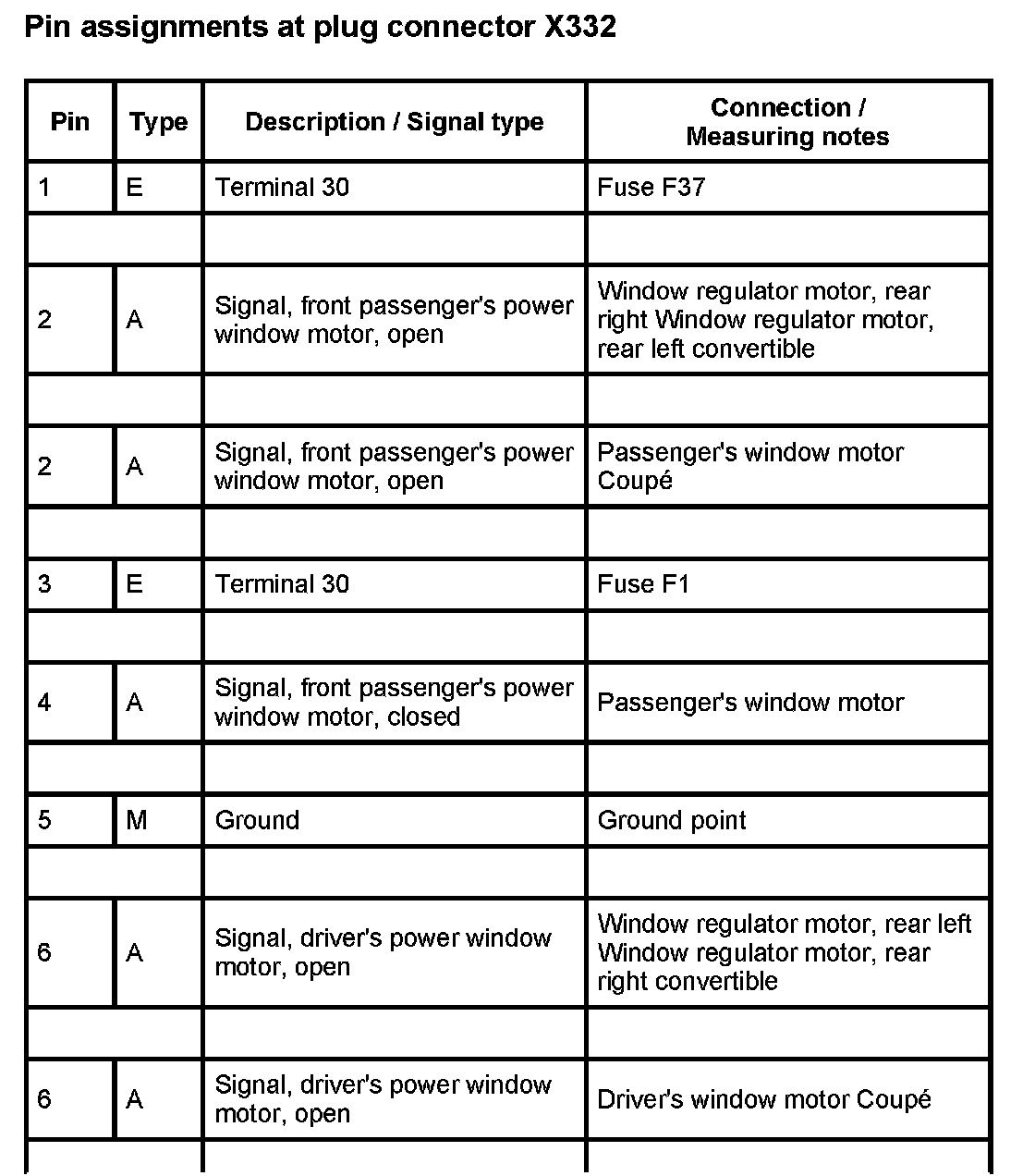

X332 Part 1:

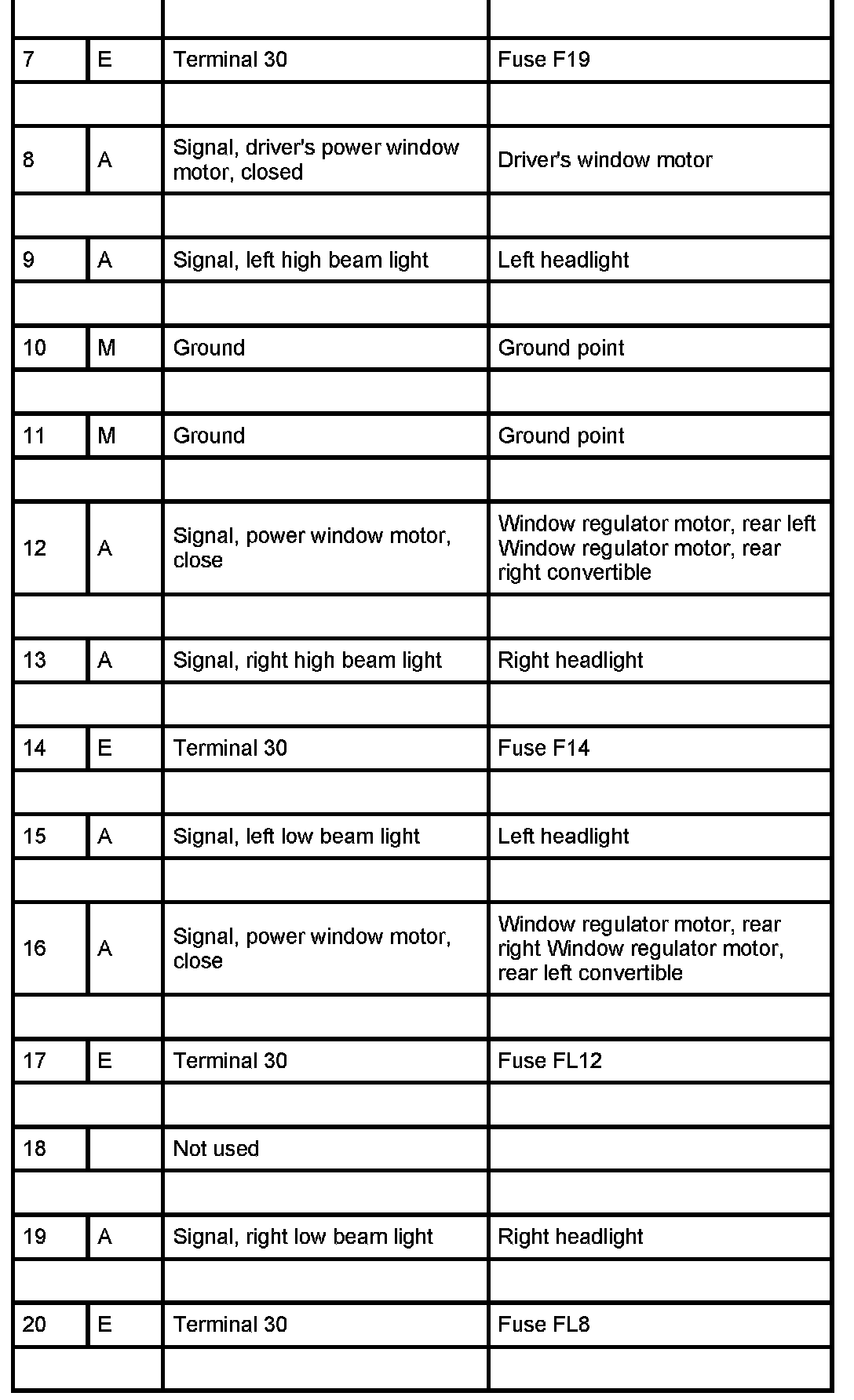

X332 Part 2:
