X33 No Adapter

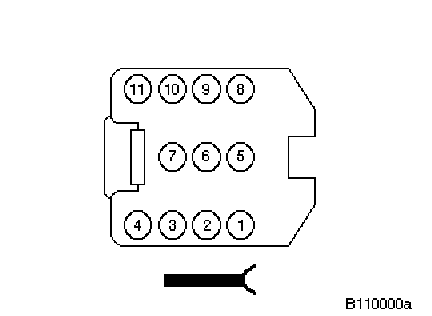

Connector View

X33 Component connector (11-pin, black)

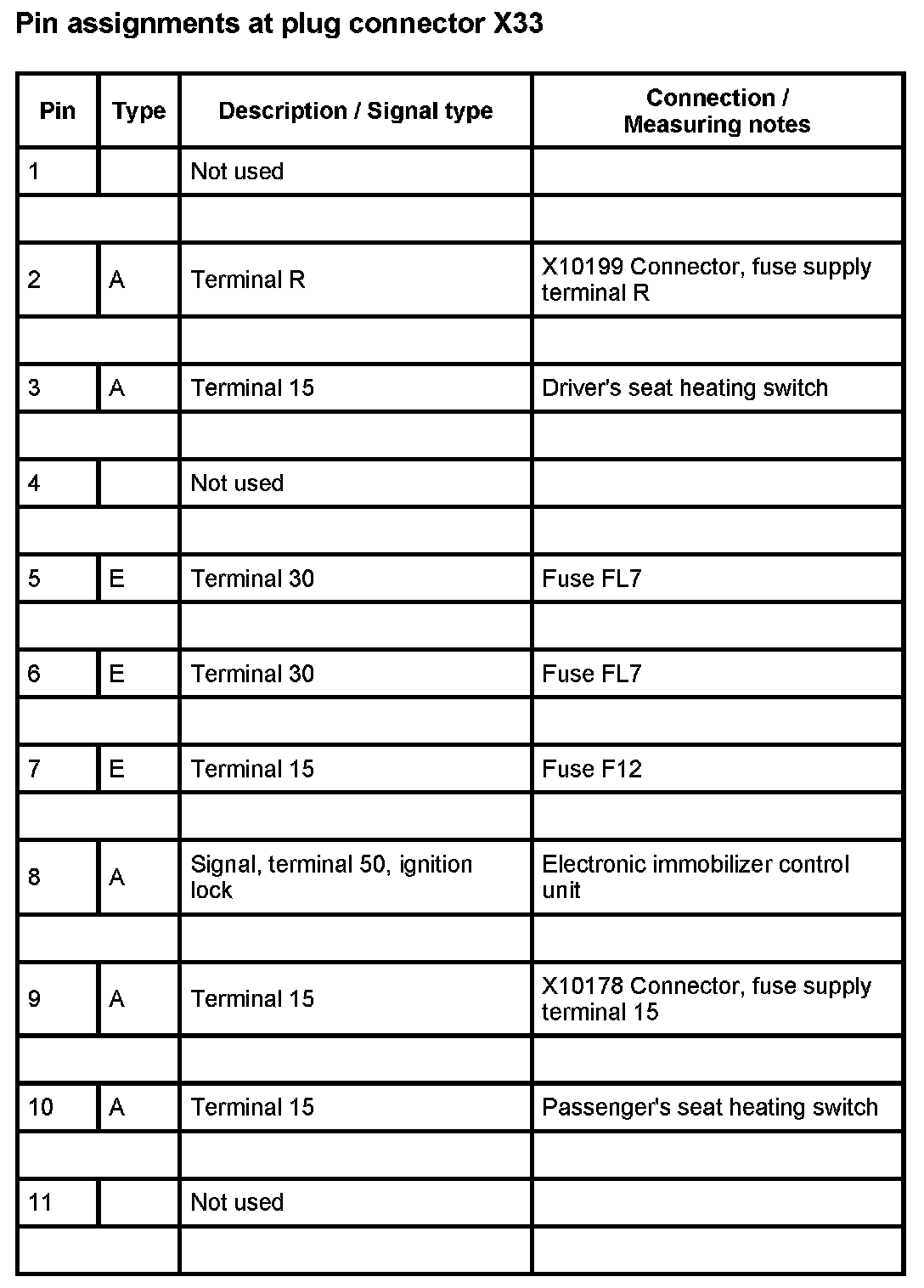

Pin Assignment

S2 Ignition switch

X33:
