Mini
>>
2006
>>
Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X2
>>
X255 Adapter 630410, Storage Location L201
>>
A1 General Module Control Unit As of 09/05
A1 General Module Control Unit As of 09/05
Connector View
X255 Component connector (54-pin, blue)

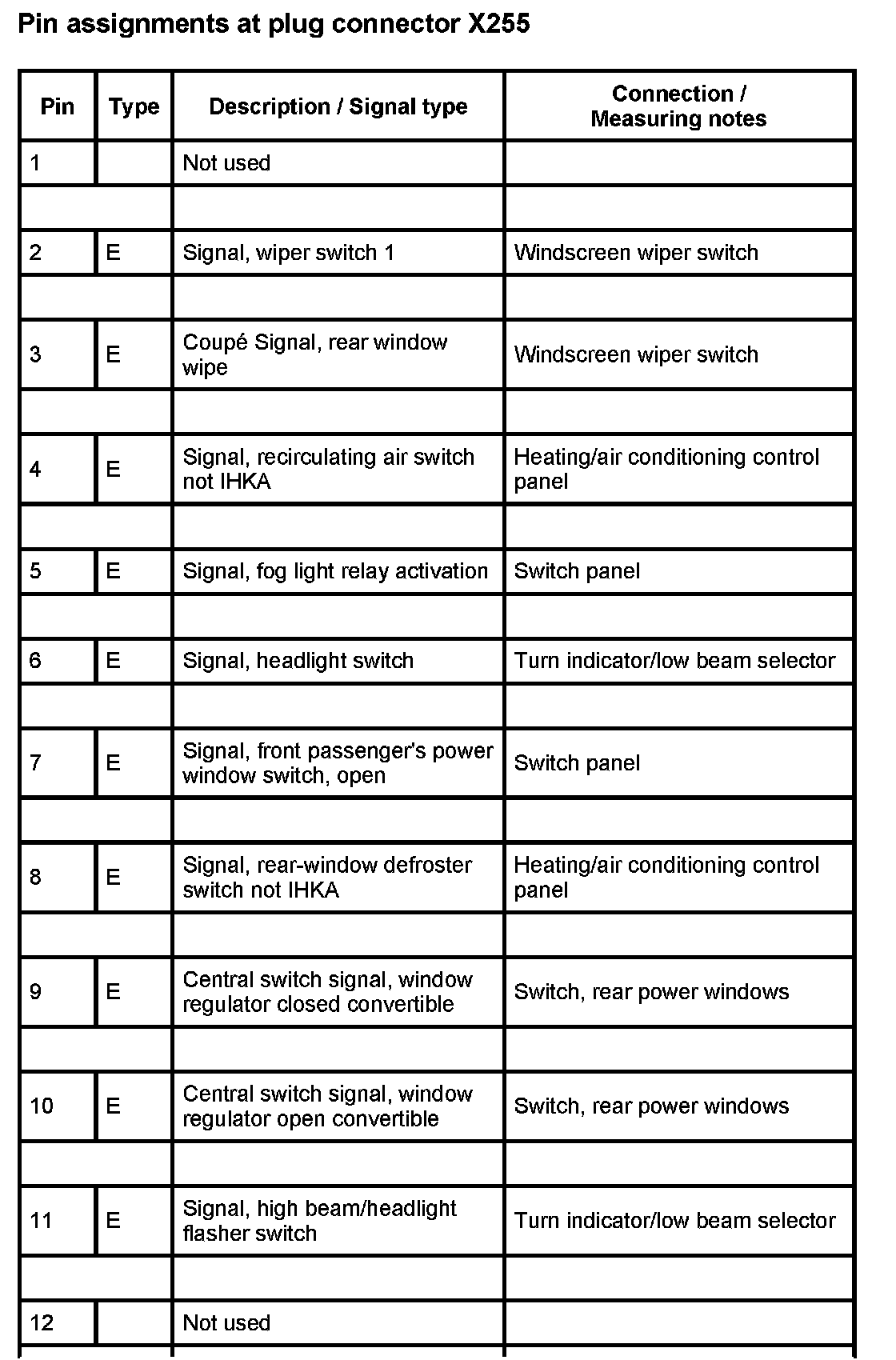

Pin Assignment

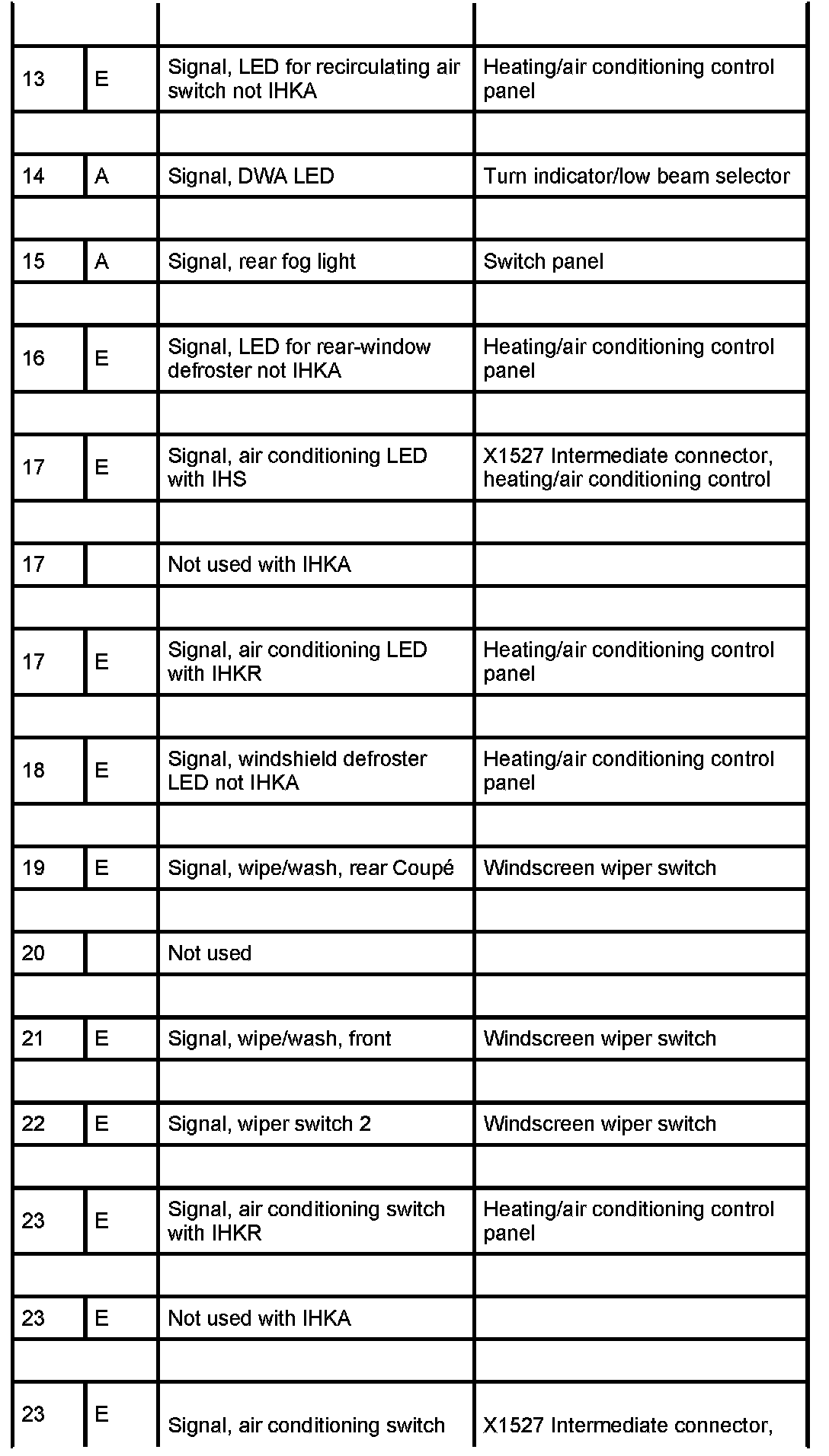

X255 Part 1:

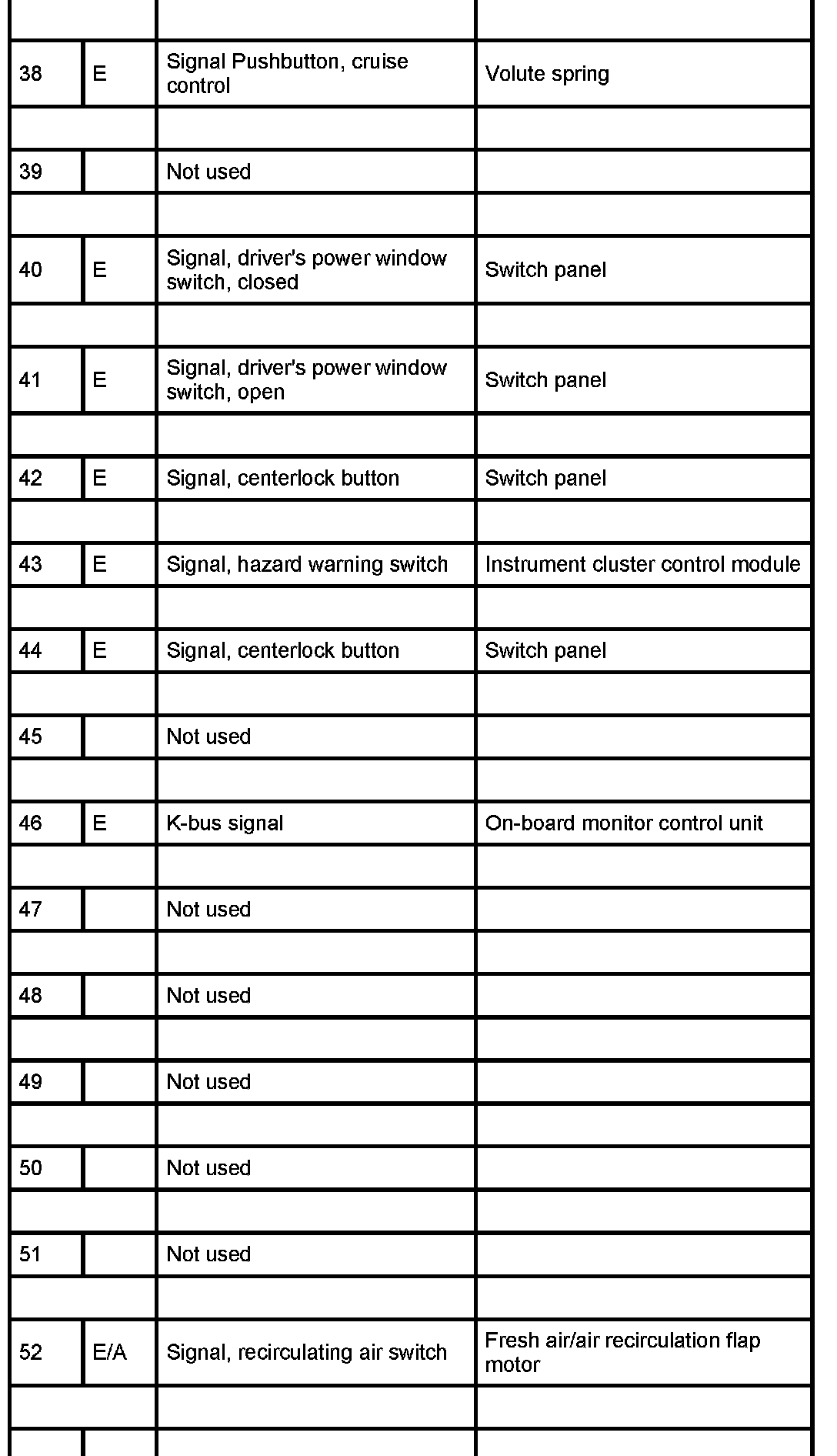

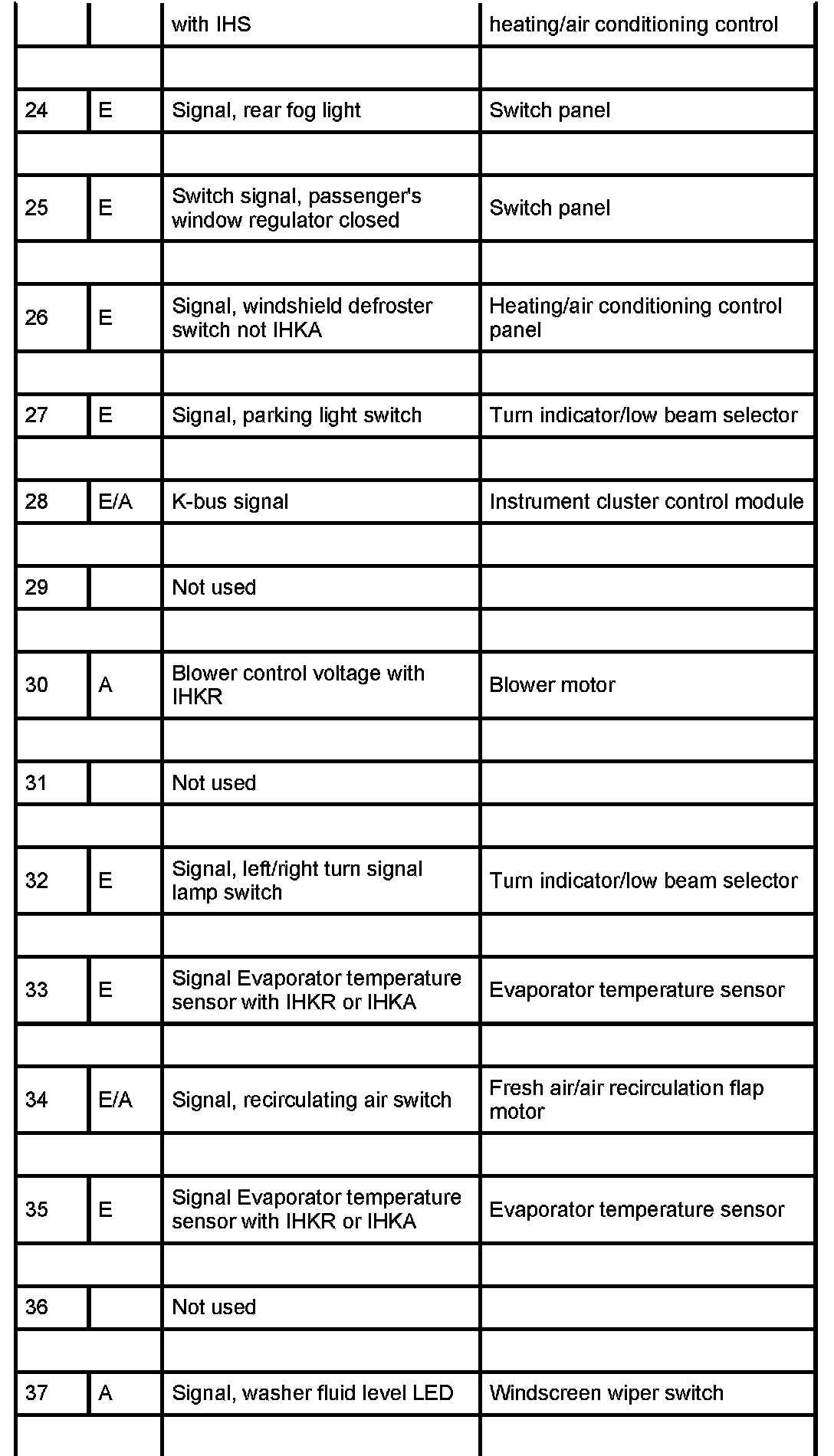

X255 Part 2:

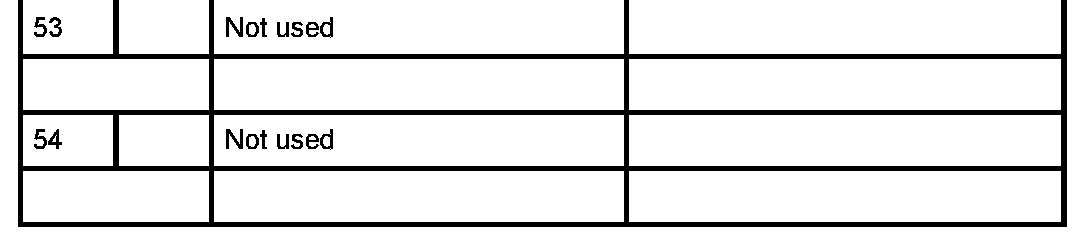

X255 Part 3:
X255 Part 4:
X255 Part 5:
