Home >> Mini >> 2006 >> Cooper S Convertible (R52) L4-1.6L SC (W11) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X2 >> X254 Adapter 630410, Storage Location L201 >> A1 General Module Control Unit As of 01/05 Up to 09/05

A1 General Module Control Unit As of 01/05 Up to 09/05

Connector View




X254 Component connector (54-pin, natural)

Pin Assignment

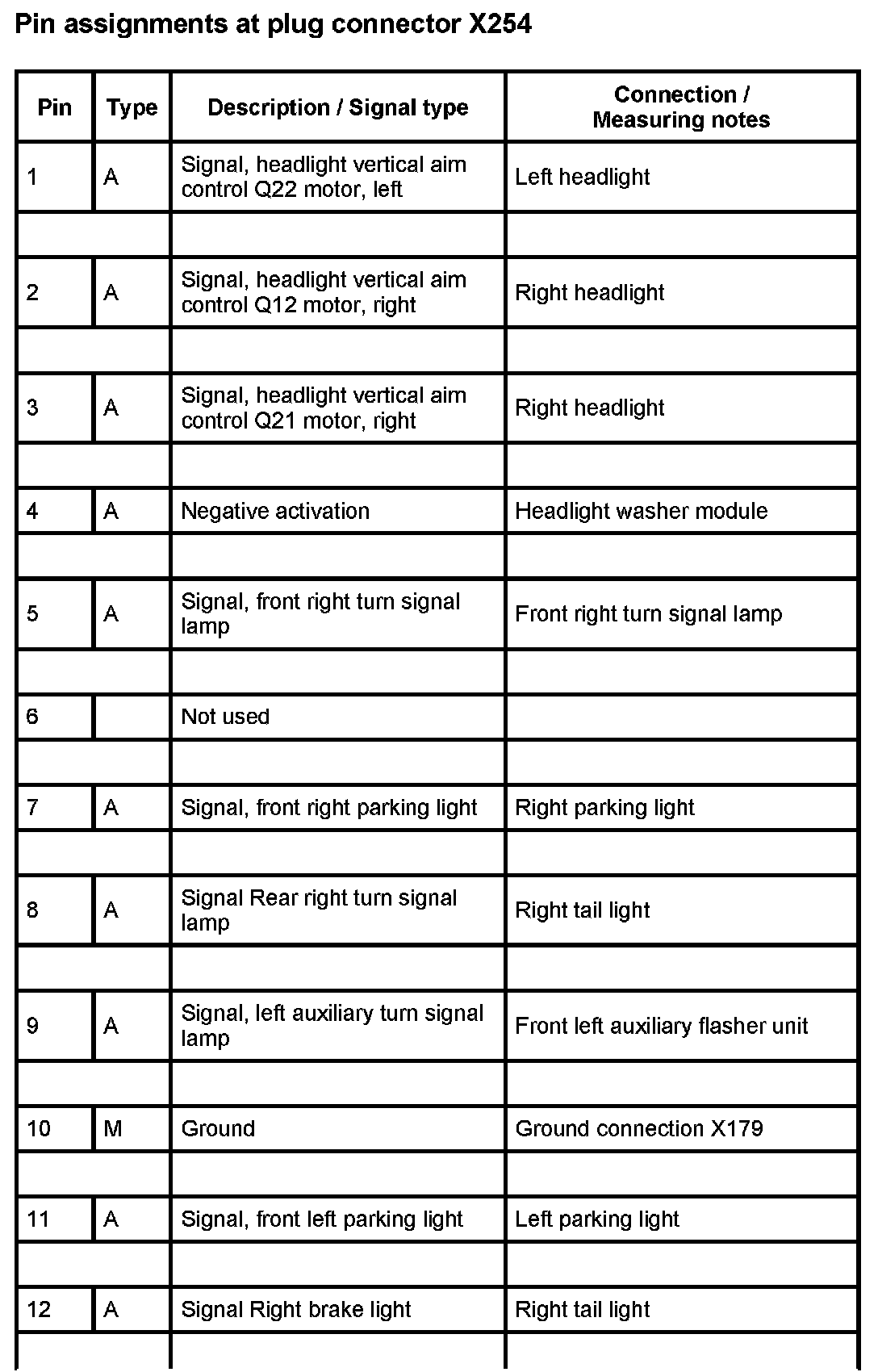

X254 Part 1:

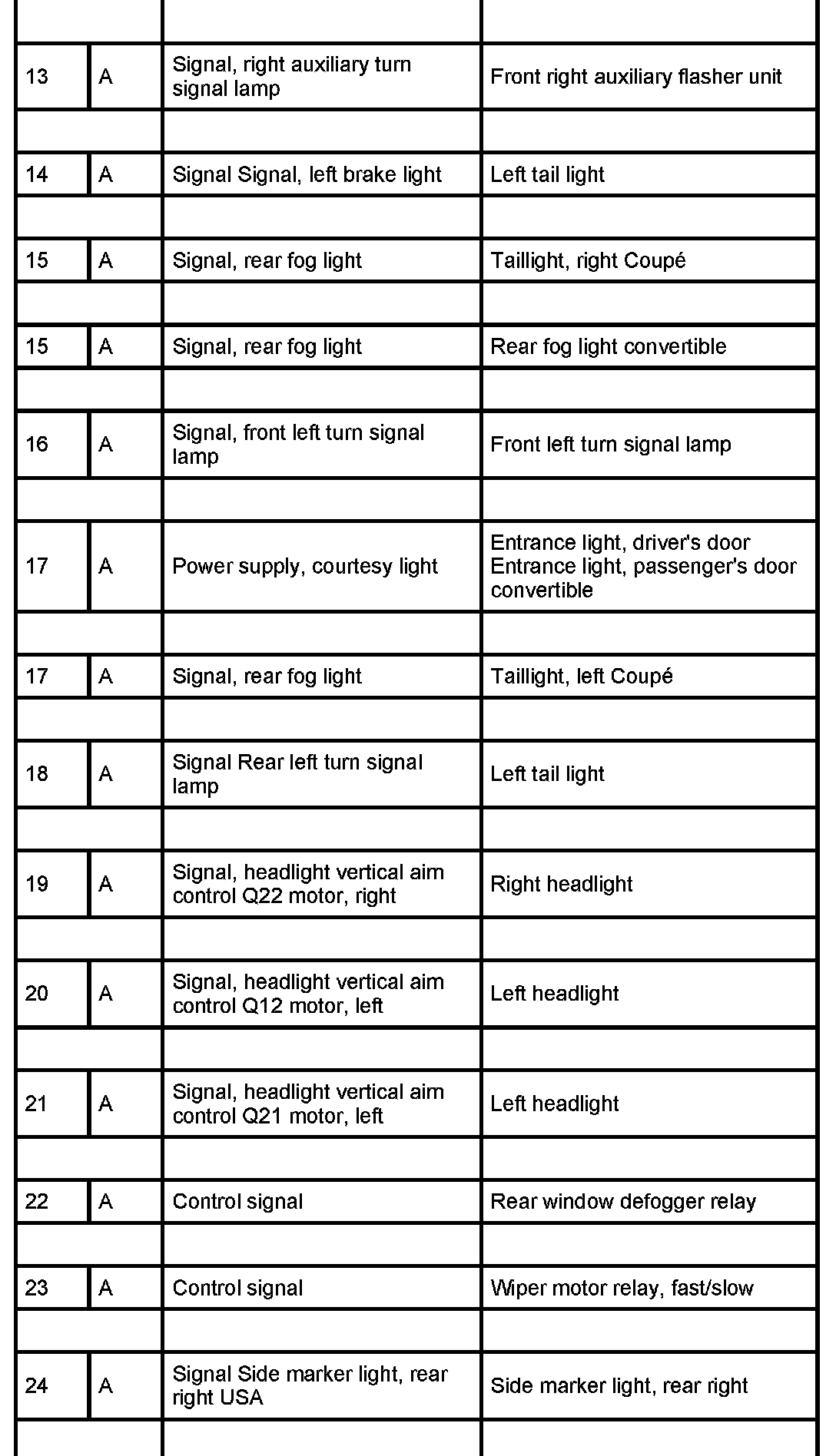

X254 Part 2:

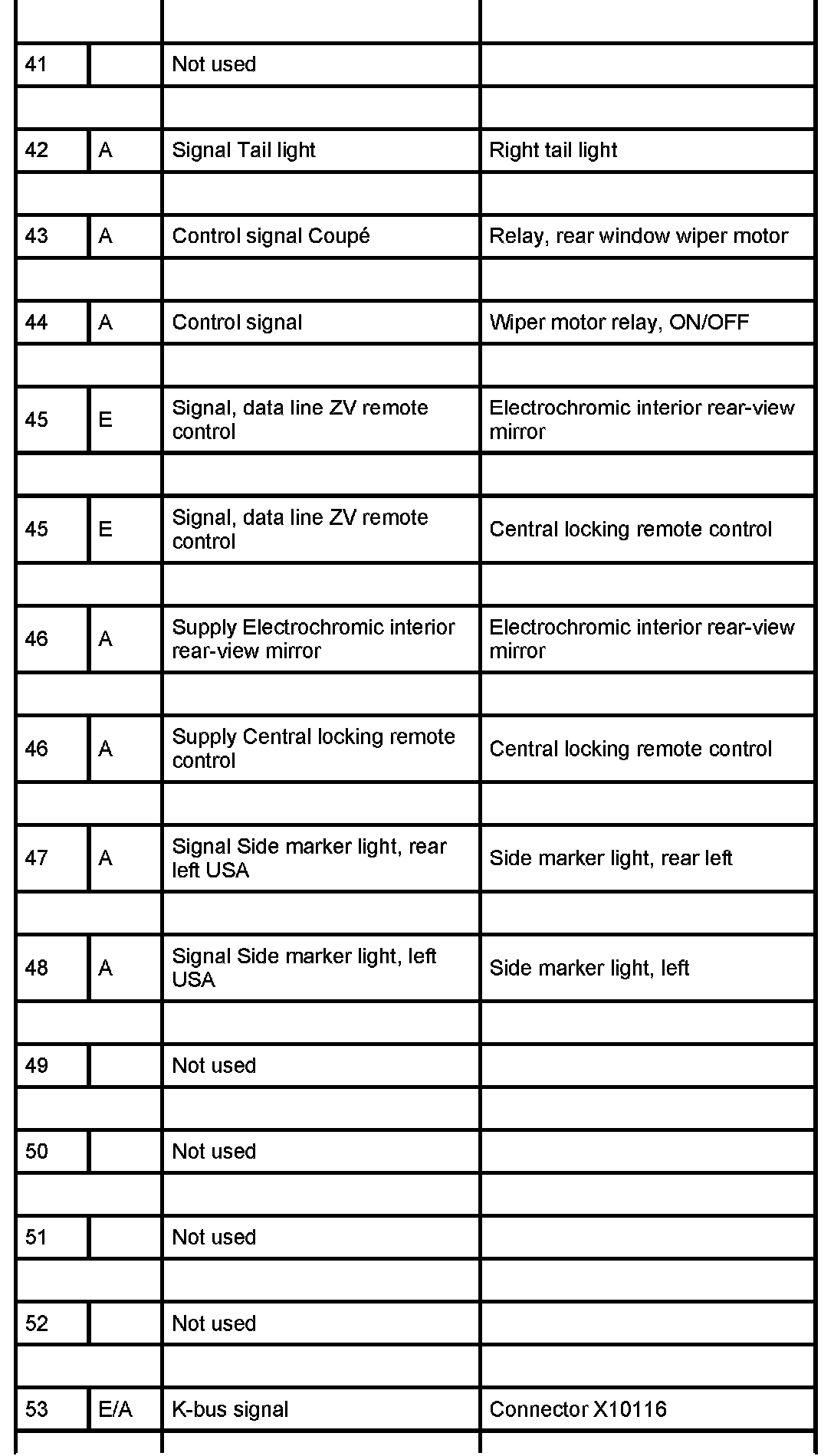

X254 Part 3:

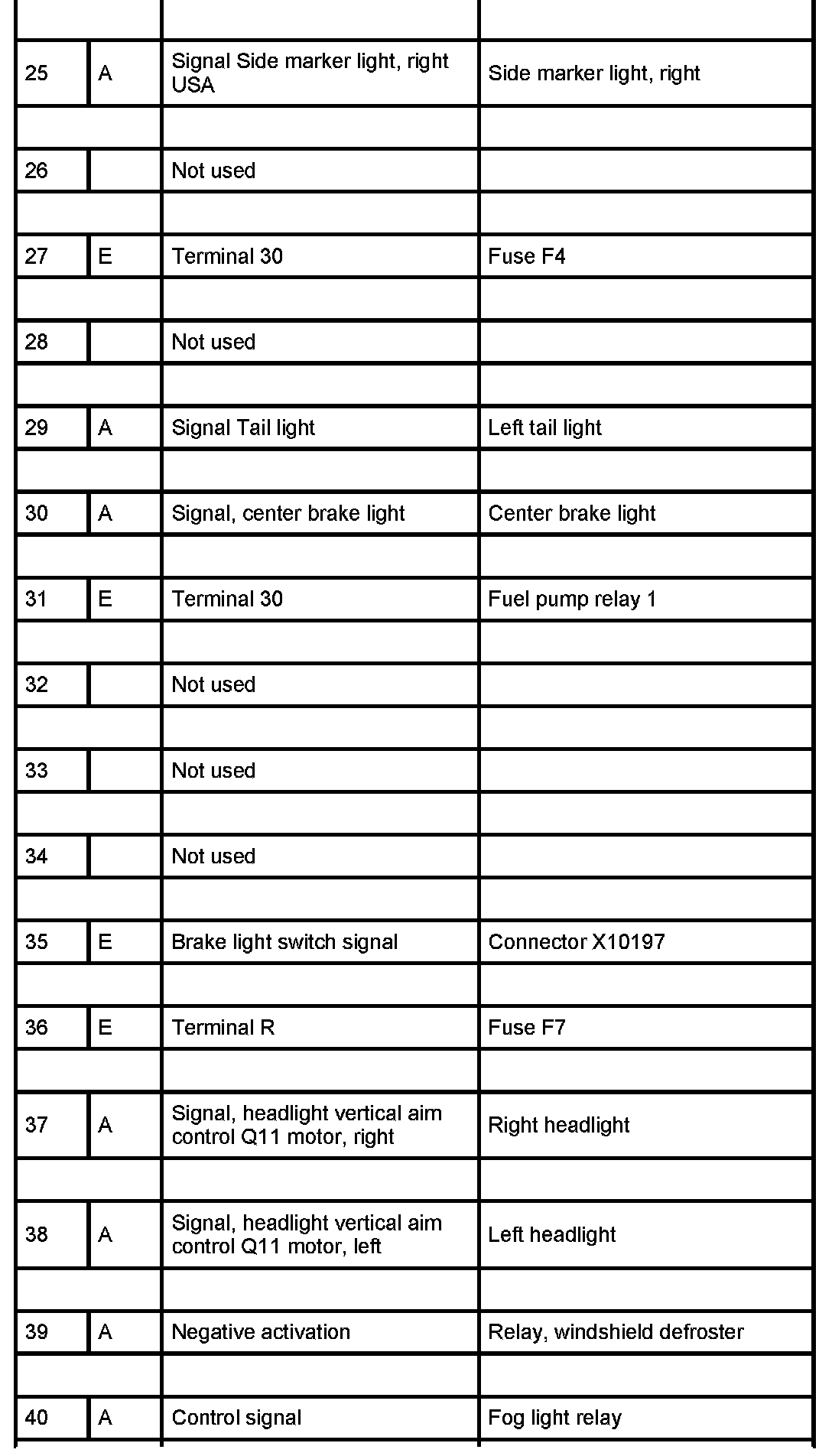

X254 Part 4:

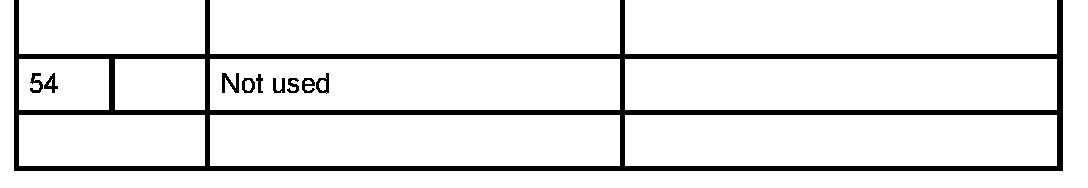

X254 Part 5:
