N22 CD Changer (Stereo System)

Connector View

X18180 Component connector (3-pin, black)

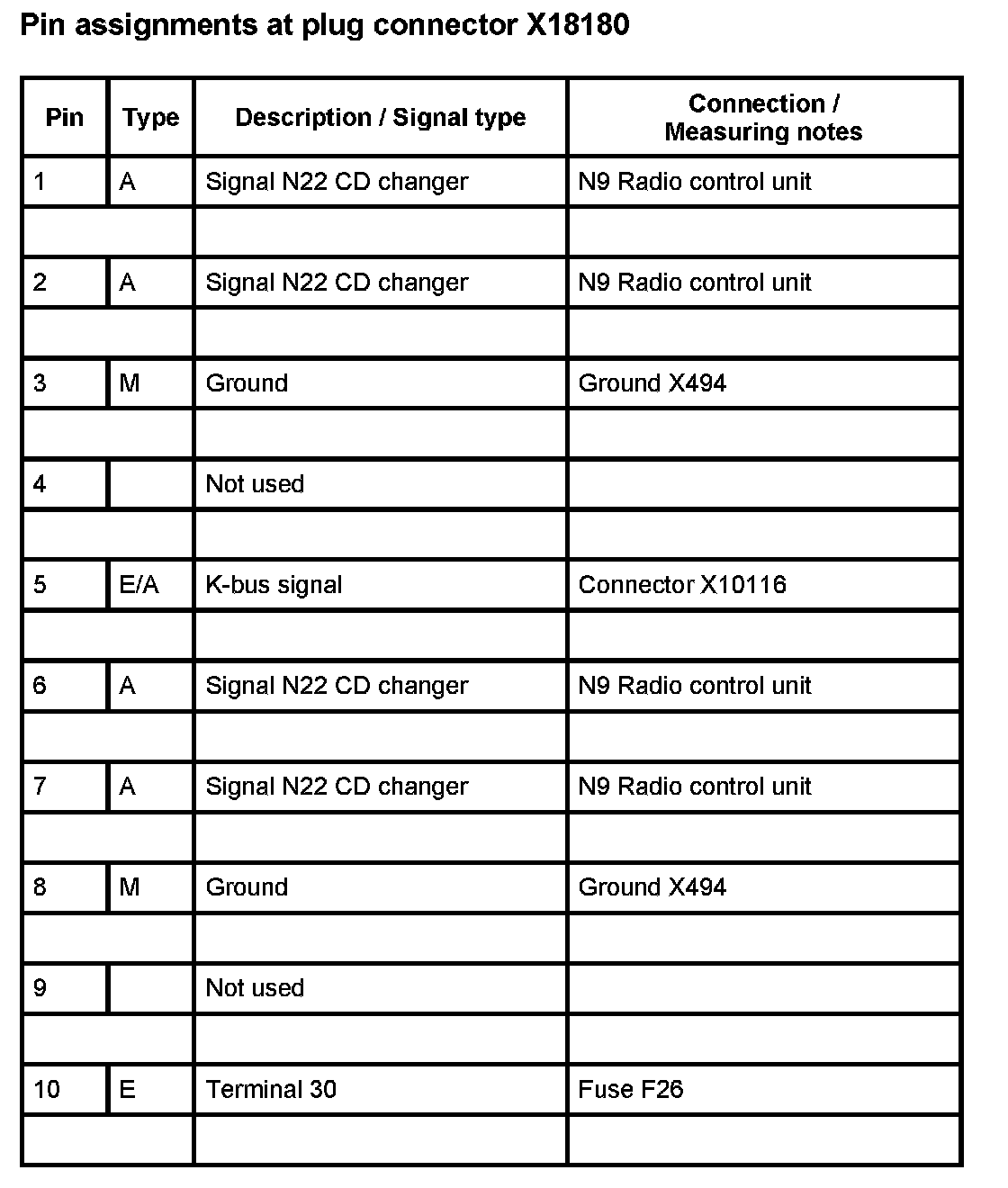

Pin Assignment

X18180:
