Mini
>>
2006
>>
Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X18126 No Adapter
>>
N9 Radio Control Unit (DSP Digital Sound Processor)
N9 Radio Control Unit (DSP Digital Sound Processor)
Connector View
X18126 Component connector (16-pin, black)
Pin Assignment

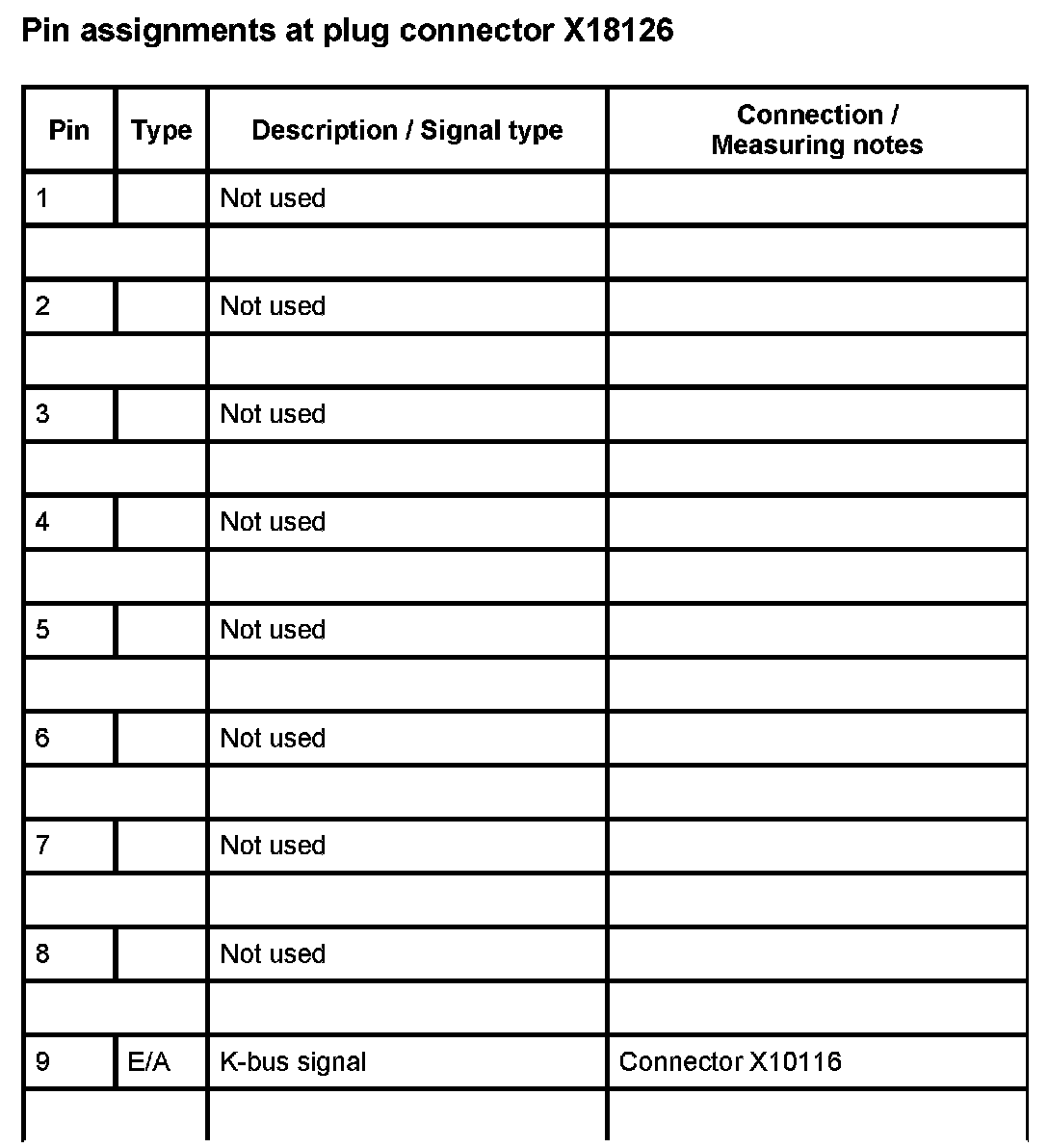

X18126 Part 1:

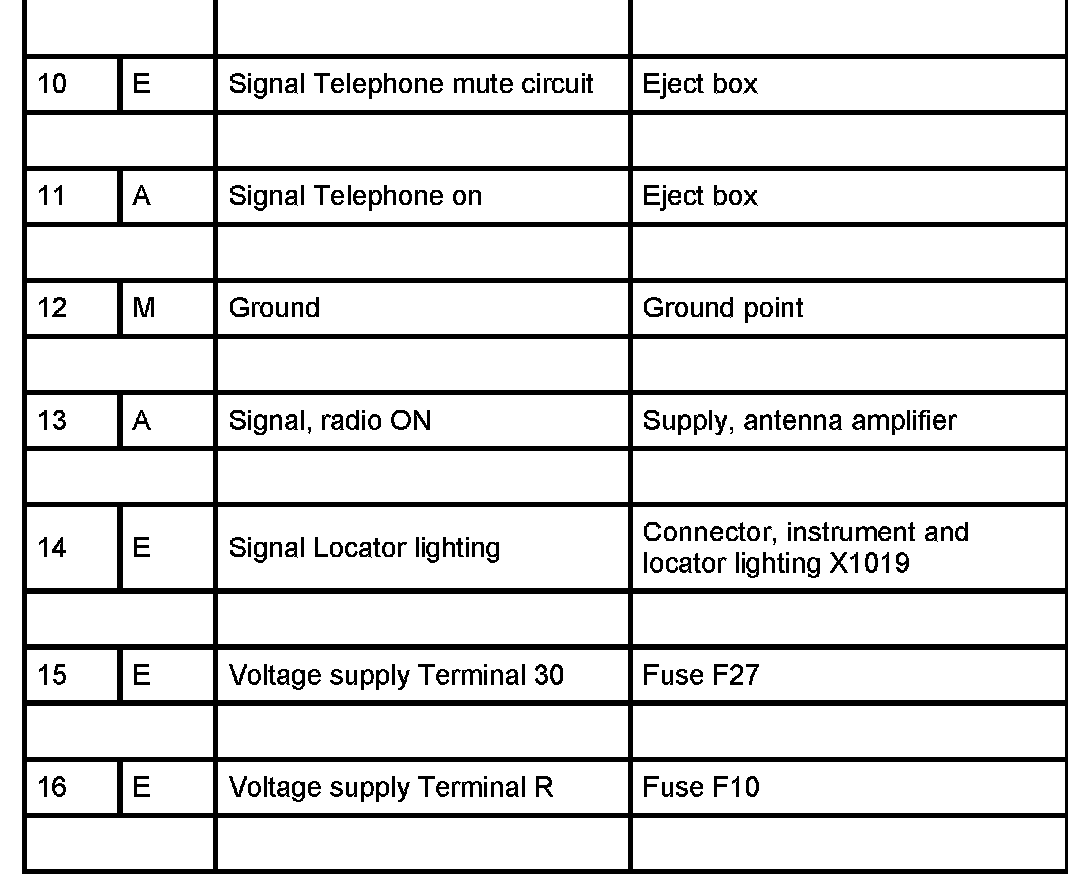

X18126 Part 2:
