Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X13038 (Convertible)
>>
A96 Convertible Soft Top Control Module (CVM Convertible Top Module)
A96 Convertible Soft Top Control Module (CVM Convertible Top Module)
Connector View
X13038

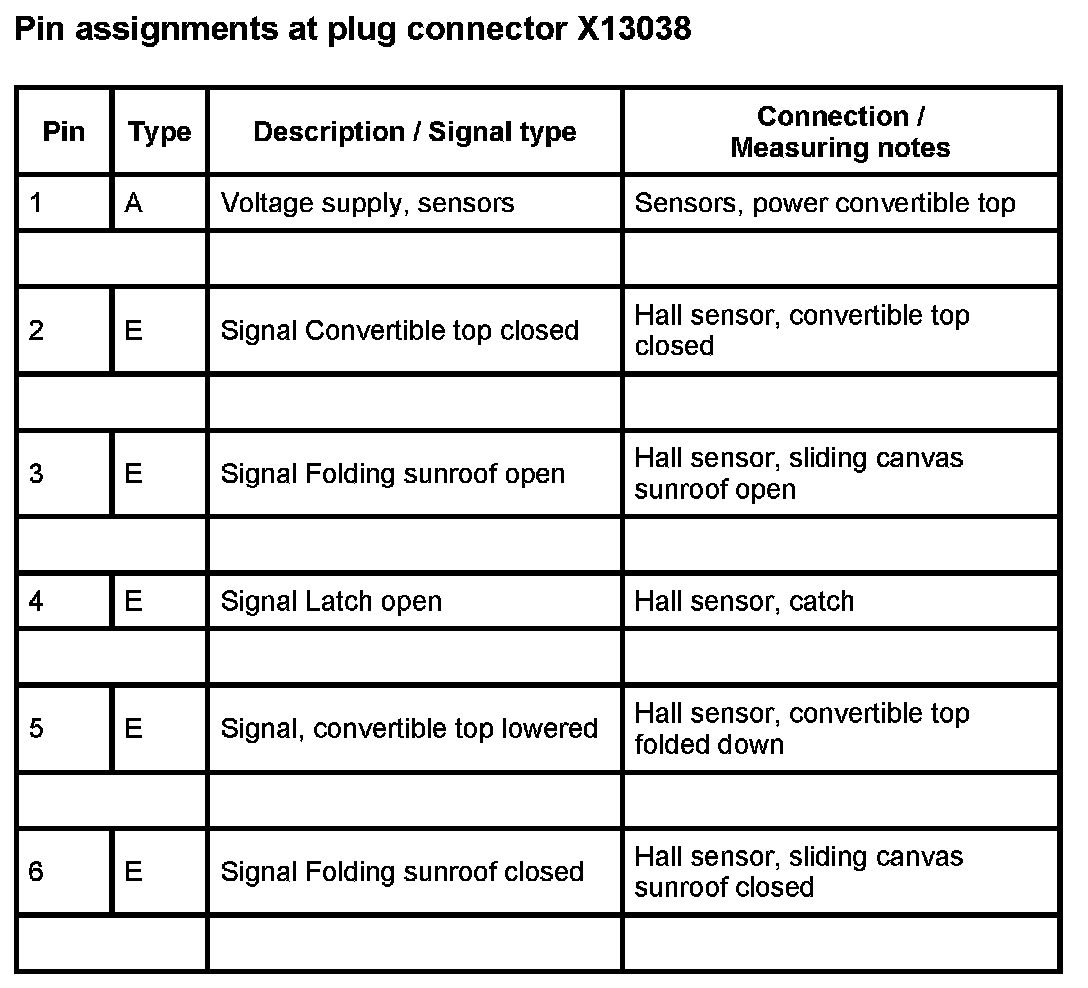

Pin Assignment
X13038:
