Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X13037 (Convertible)
>>
A96 Convertible Soft Top Control Module (CVM2 Convertible Top Module 2)
A96 Convertible Soft Top Control Module (CVM2 Convertible Top Module 2)

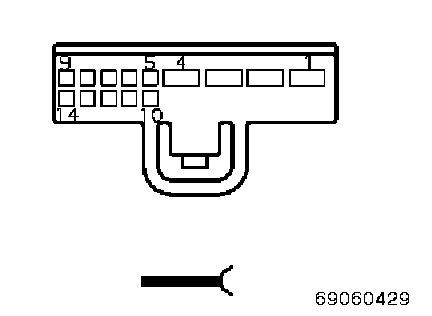

Connector View
X13037 Component connector (14-pin, black)
Pin Assignment

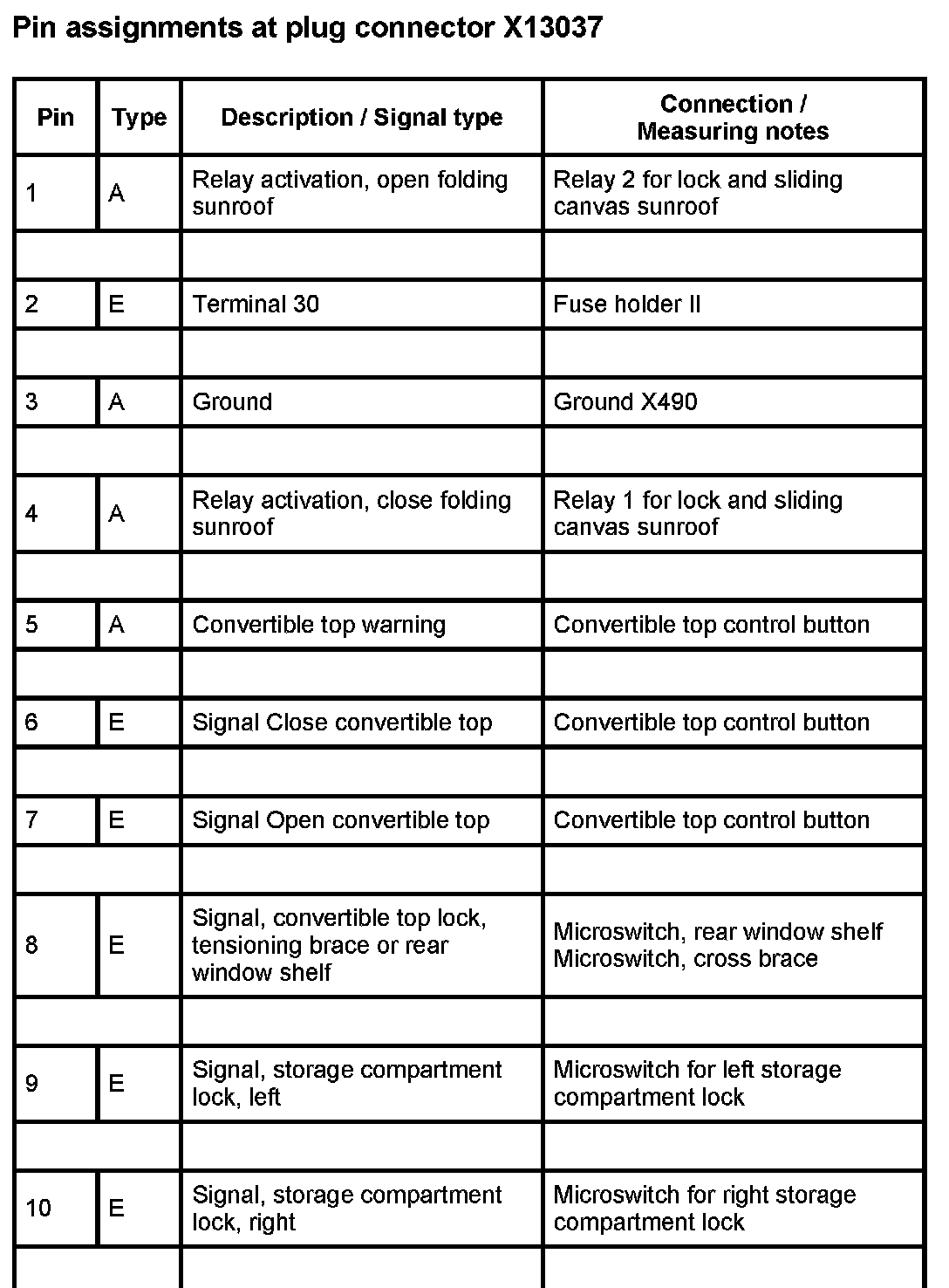

X13037 Part 1:

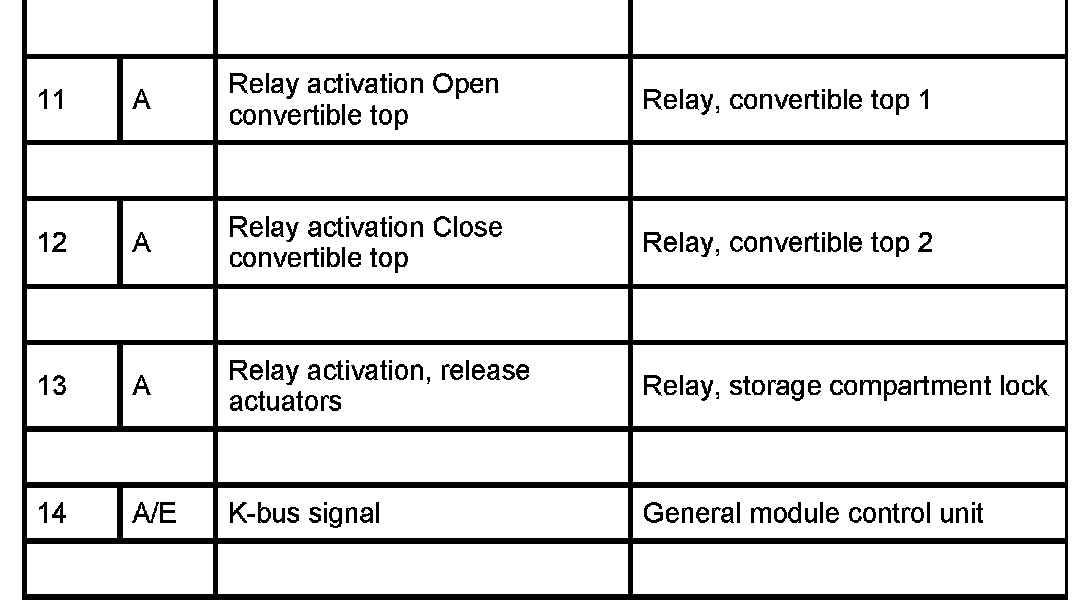

X13037 Part 2:
