Mini
>>
2006
>>
Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X11525
>>
A7 ABS Control Module (As of 09/05 With ABS Anti-Lock Brake System)
A7 ABS Control Module (As of 09/05 With ABS Anti-Lock Brake System)
Connector View
(26-Pin, Black)
Image Unavailable
Pin Assignment

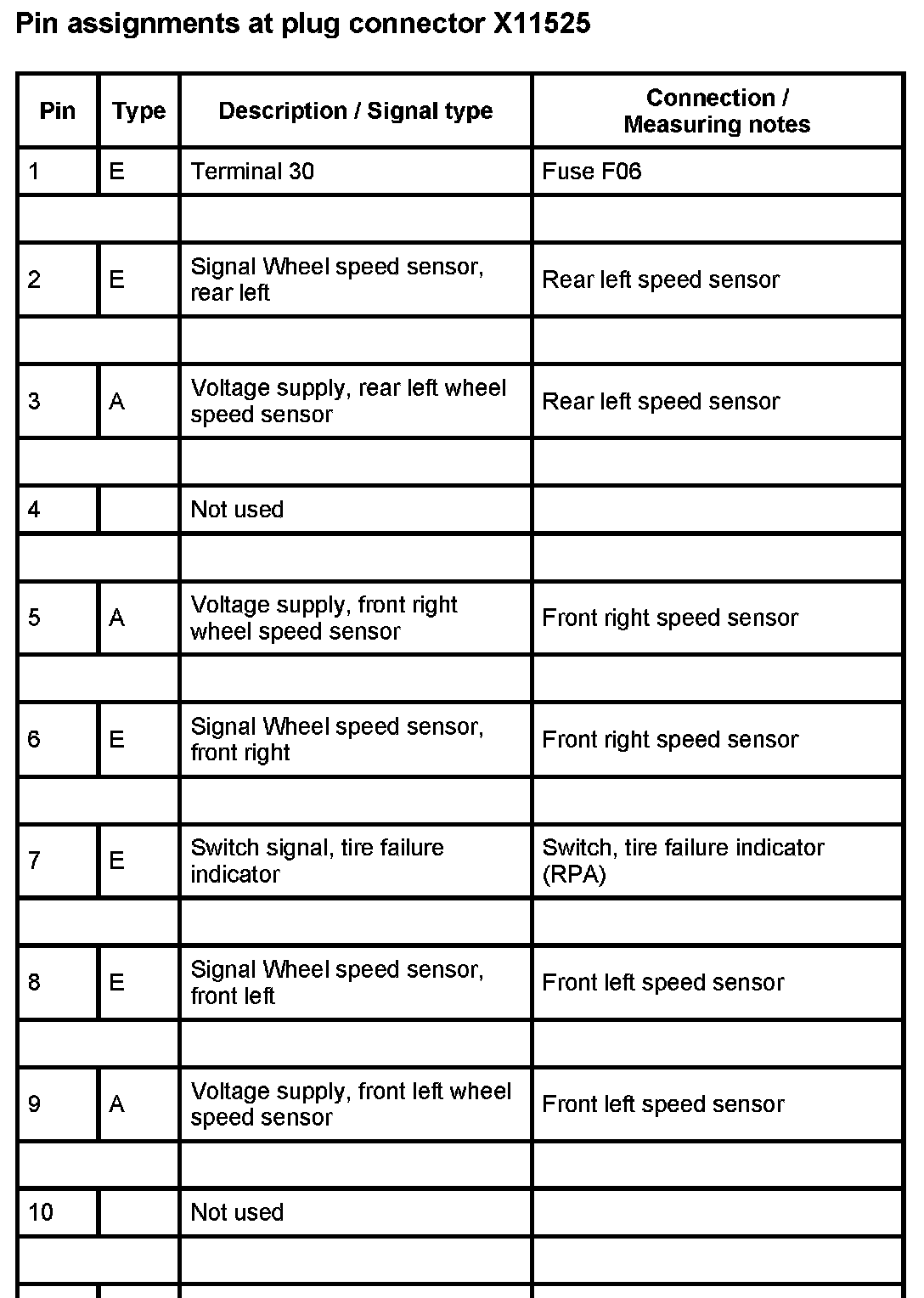

X11525 Part 1:

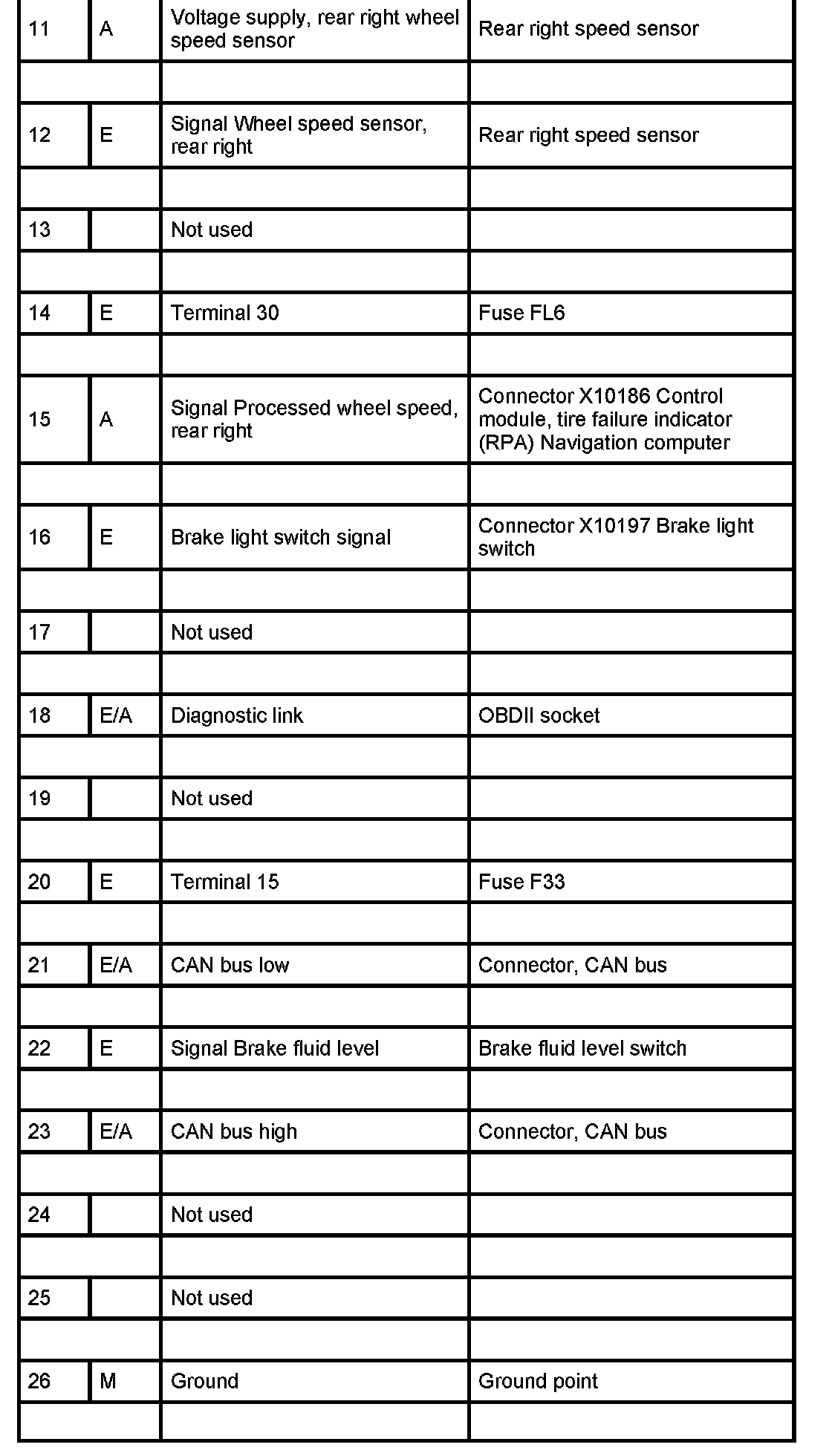

X11525 Part 2:
