Mini
>>
2006
>>
Cooper S Convertible (R52) L4-1.6L SC (W11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>
X10204 No Adapter
>>
K96 Fuel Pump Relay 1 (As of 09/02 Up to 09/05 With Coupe)
K96 Fuel Pump Relay 1 (As of 09/02 Up to 09/05 With Coupe)
Connector View
X10204 Component connector (12-pin, natural)

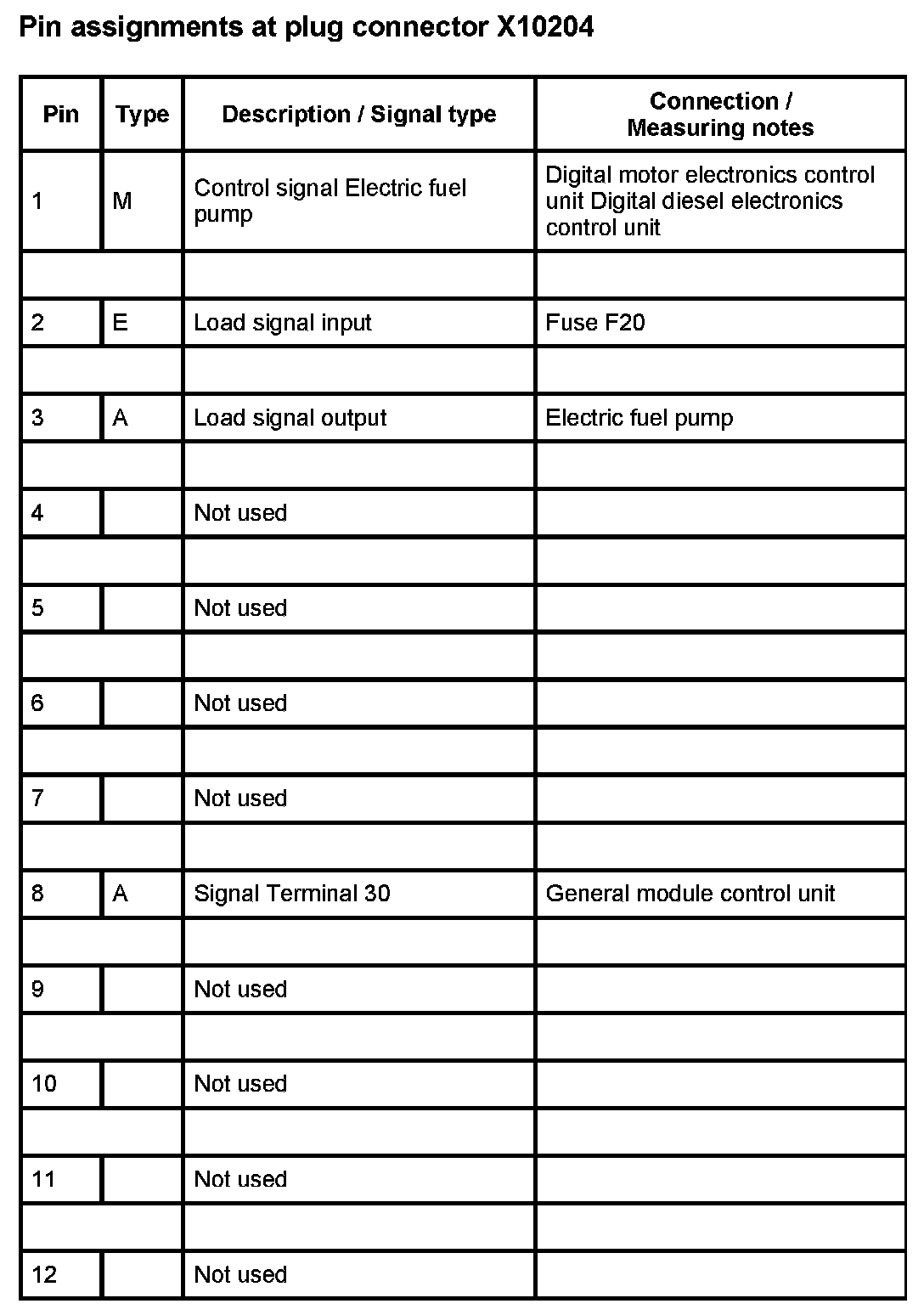

Pin Assignment
X10204:
