Removing and Installing/Replacing Window Cavity Cover Strip for Door Window, Rear Left or Right

51 37 265 - Removing and installing/replacing window cavity cover strip for door window, rear left or right





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge





Necessary preliminary tasks:
- Remove rear side trim panel Removing and Installing Rear Left or Right Side Trim Panel





Lever out catches (1) on inside of window cavity cover strip (2).

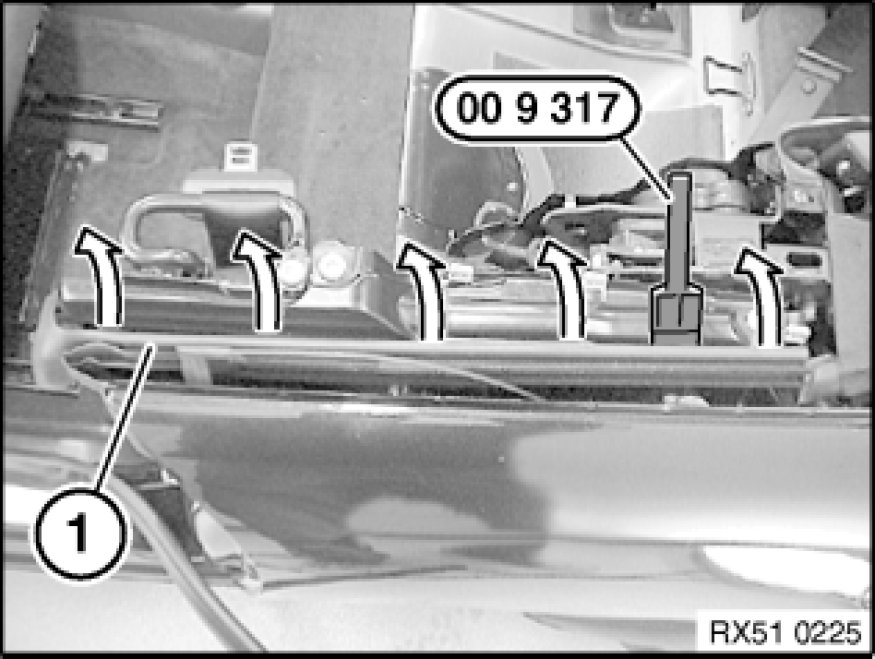

Carefully lever out window cavity cover strip (1) upwards with special tool 00 9 317 00 9 317 Trim Panel Wedge.





Installation:

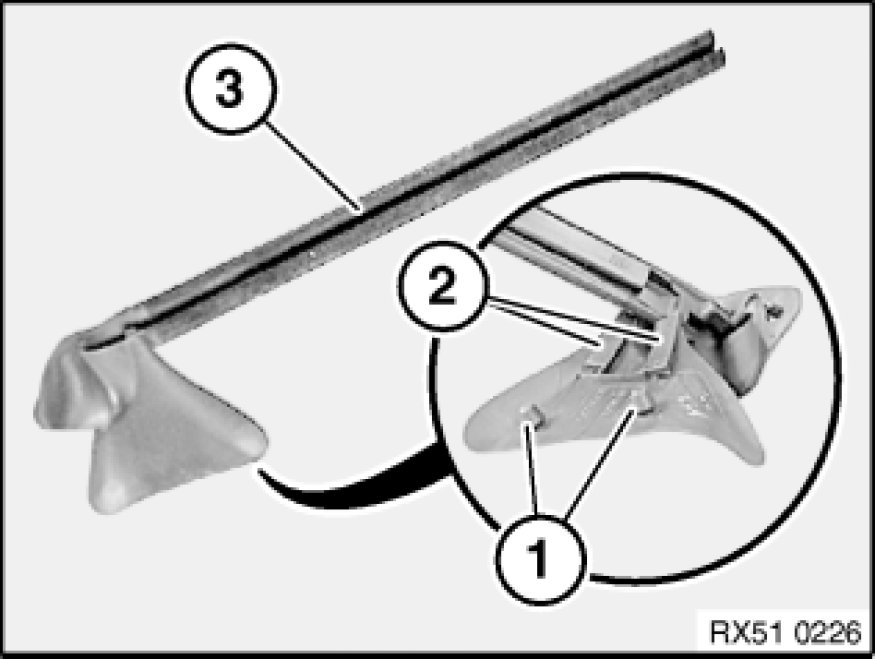

Catches (1) and guides (2) on window cavity cover strip (3) must not be damaged.
