67 11 560 Replacing Servodrive for Rear Lid Lock

67 11 560 - Replacing servodrive for rear lid locking





Necessary preliminary tasks:
- Remove retractor 51 24 070 Removing and Installing/Replacing Retractor and place to one side

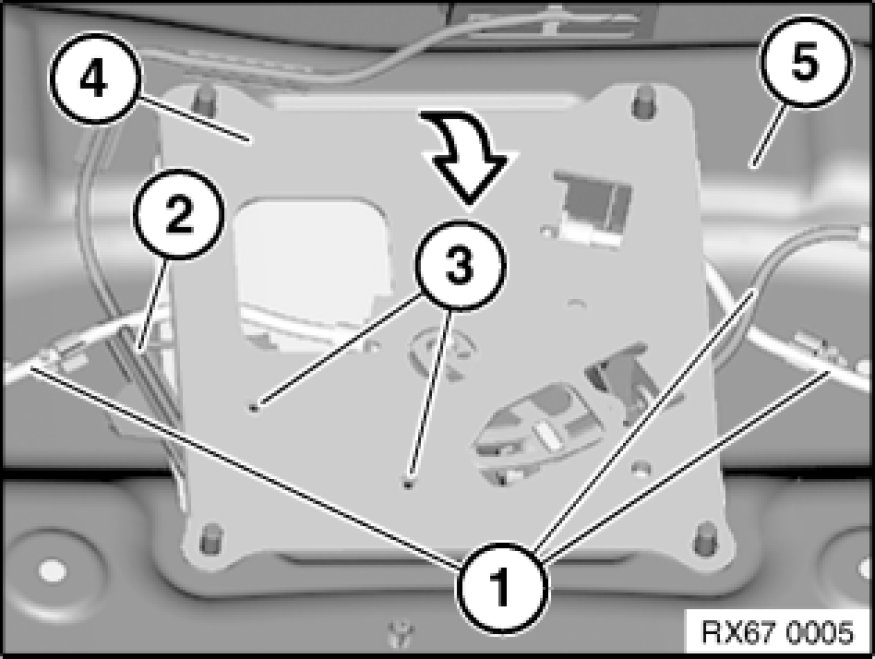

Disconnect Bowden cables (1).
Unclip line (2).
Release screws (3).
Remove drive for rear lid lock (4) in direction of arrow from rear lid (5) and fold down.

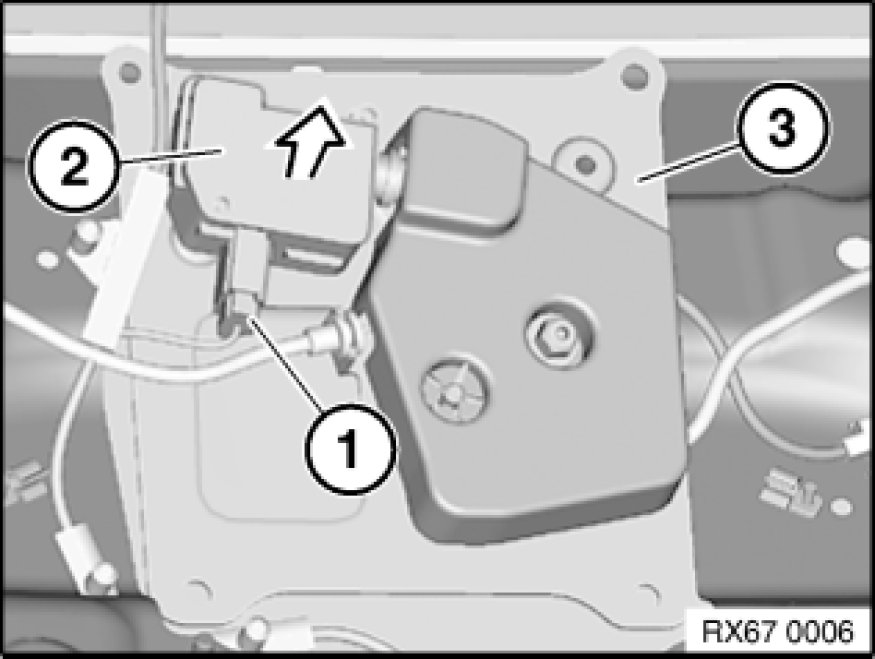

Unfasten plug connection (1) and disconnect.
Remove servodrive for rear lid locking (2) in upwards direction from drive for rear lid lock (3).
