Replacing Bowden Cable for Left or Right Rear Seat Backrest

52 26 751 - Replacing Bowden cable for left or right rear seat backrest





Necessary preliminary tasks:
- Partially remove backrest cover Removing and Installing/Replacing Backrest Cover for Left or Right Rear Seat

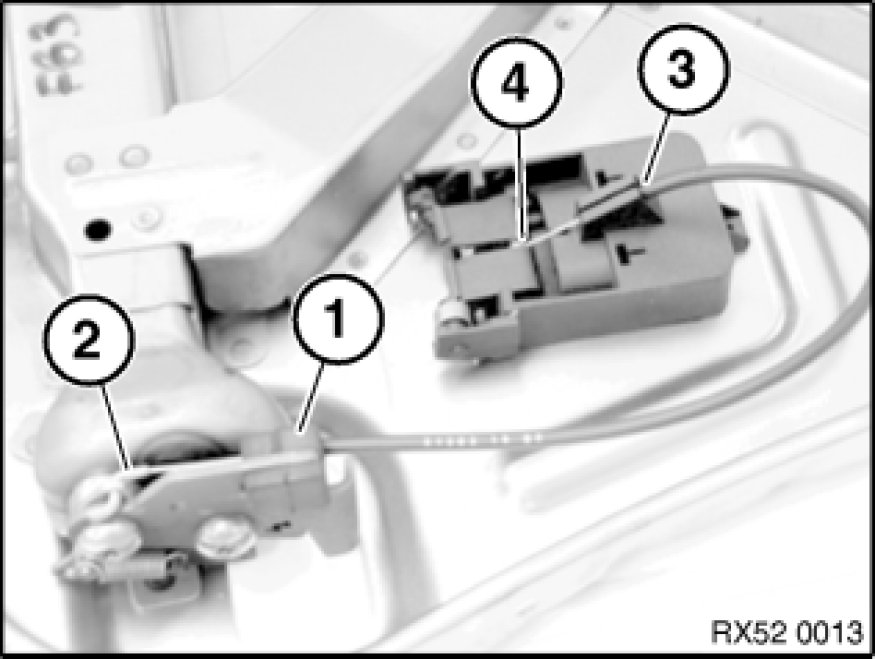

Remove outer sleeve of Bowden cable from lock (1).
Disconnect Bowden cable from lock (2).
Remove outer sleeve of Bowden cable (3) from actuating mechanism.
Disconnect Bowden cable (4) from actuating mechanism.
Remove Bowden cable.
