Removing and Installing/Replacing Actuating Mechanism for Rear Seat Backrest

52 26 303 - Removing and installing/replacing actuating mechanism for rear seat backrest





Necessary preliminary tasks:
- Remove rear panel on rear seat backrest Removing and Installing/Replacing Rear Panel on Rear Seat Backrest

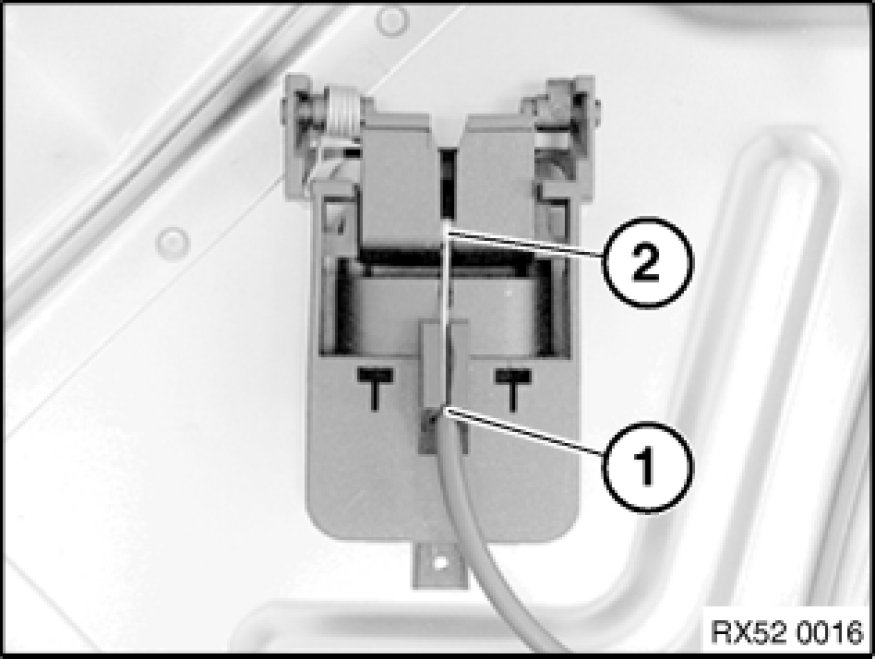

Remove outer sleeve of Bowden cable (1) from actuating mechanism.
Disconnect Bowden cable (2) from actuating mechanism.

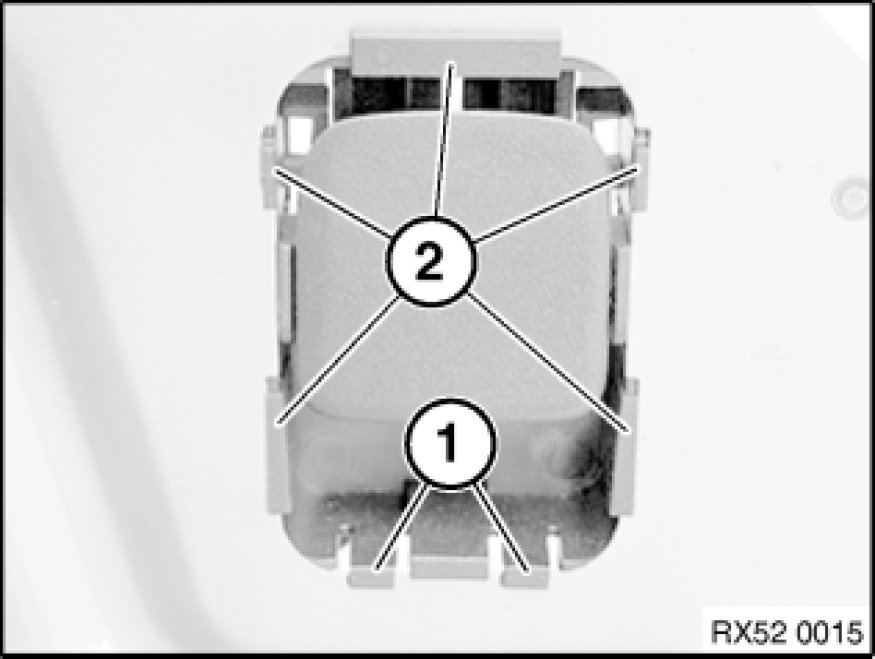

Release clips (1) and remove actuating mechanism.

Installation:
Check that guide lugs (2) are correctly seated.
