Removing and Installing or Replacing Rear Seat

52 26 005 - Removing and installing or replacing rear seat

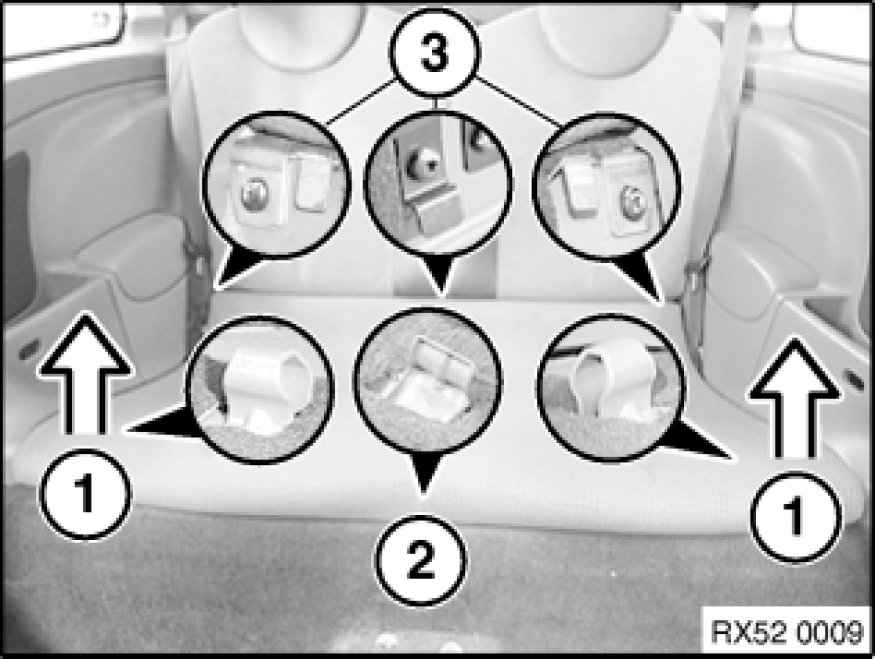

Firmly pull rear seat (1) upwards.
Slide rear seat towards rear and remove from mounting (2).
Remove rear seat from mountings (3).
Remove rear seat.





Replacement:

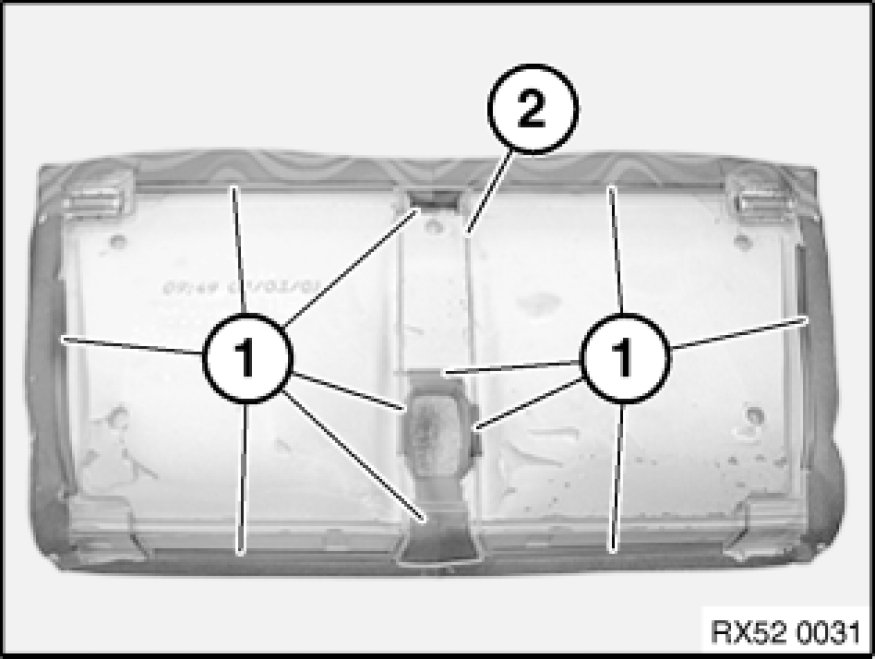

Detach clips (1) from seat frame (2).
Remove seat frame (2).
