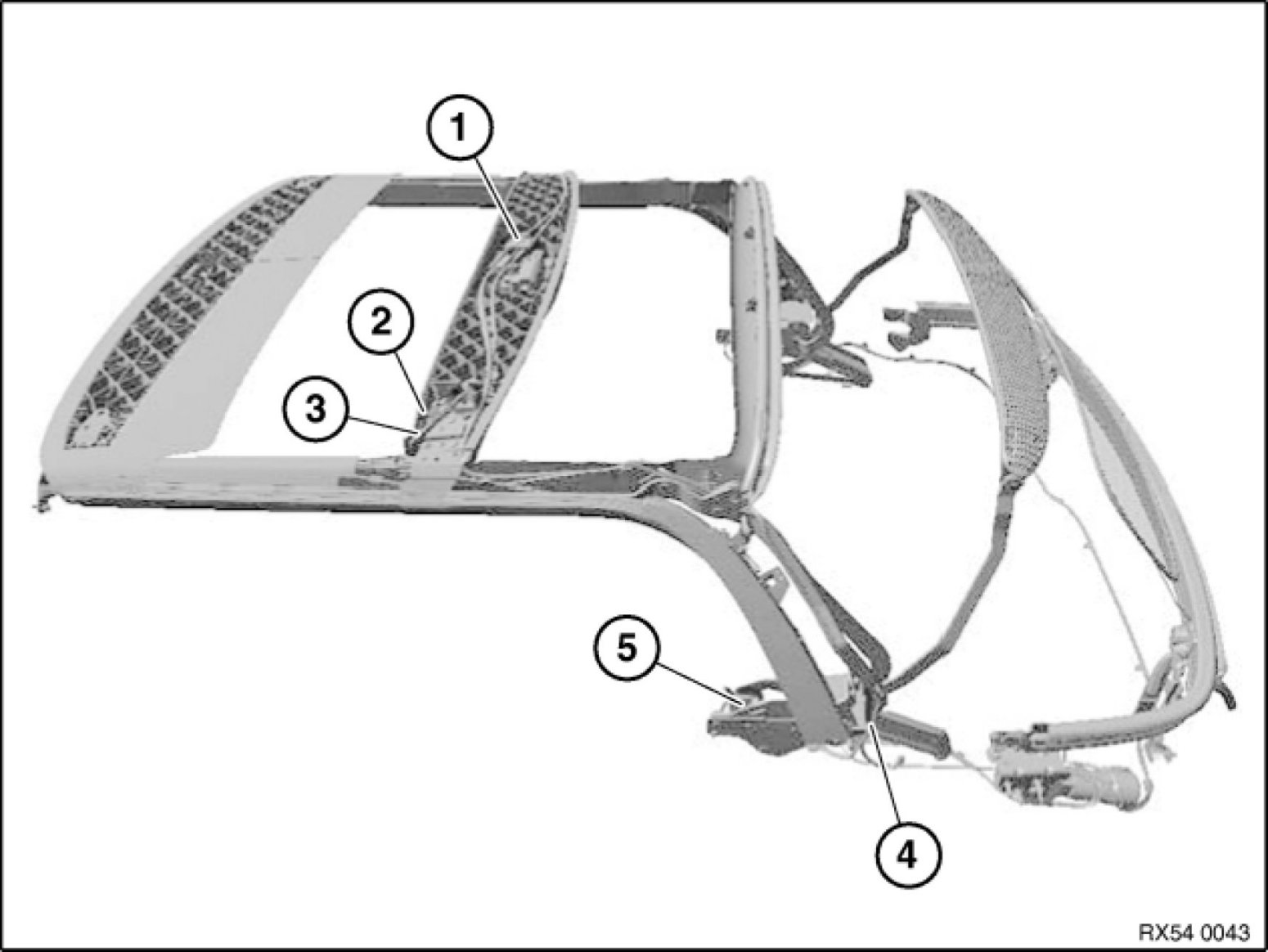

Overview of Hall Sensors in Convertible Top




54 34 ... - Overview of Hall sensors in convertible top





Note:

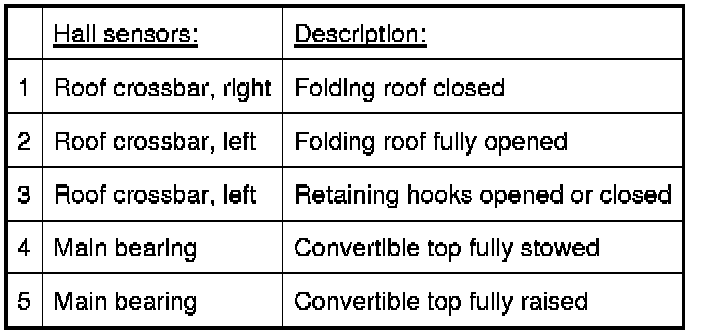

Various Hall sensors provide constant information on the position of the folding roof and convertible top.
