Removing and Installing/Replacing Left or Right Guide Rail Panel




54 34 357 - Removing and installing/replacing left or right guide rail panel





Necessary preliminary tasks:
- Open folding roof

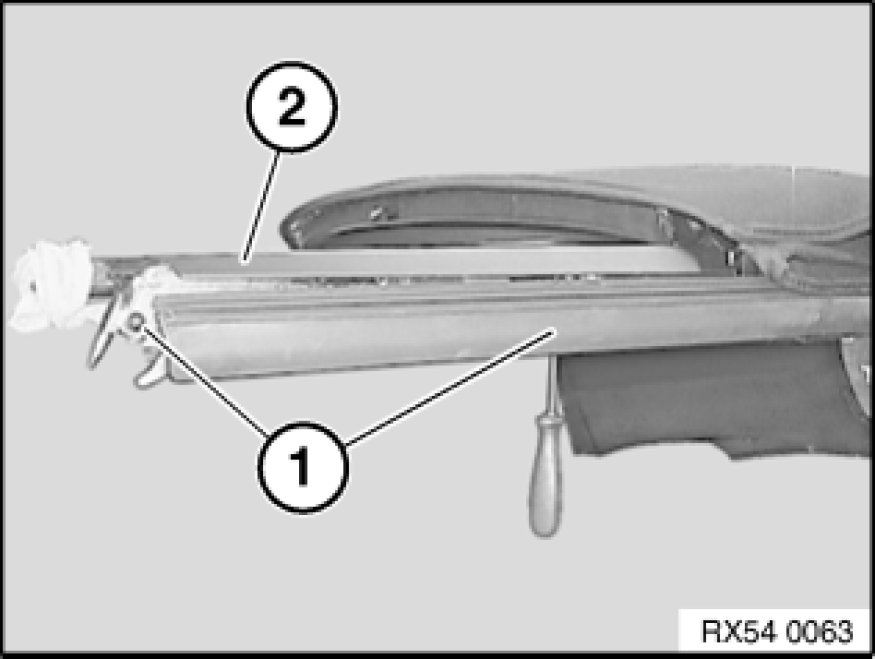

Release screws (1).
Remove panel (2).
