Removing and Installing/Replacing Both Trims on Rollover Bar on Left or Right

54 61 011 - Removing and installing/replacing both trims on rollover bar on left or right





Necessary preliminary tasks:
- Remove panels for rollover protection

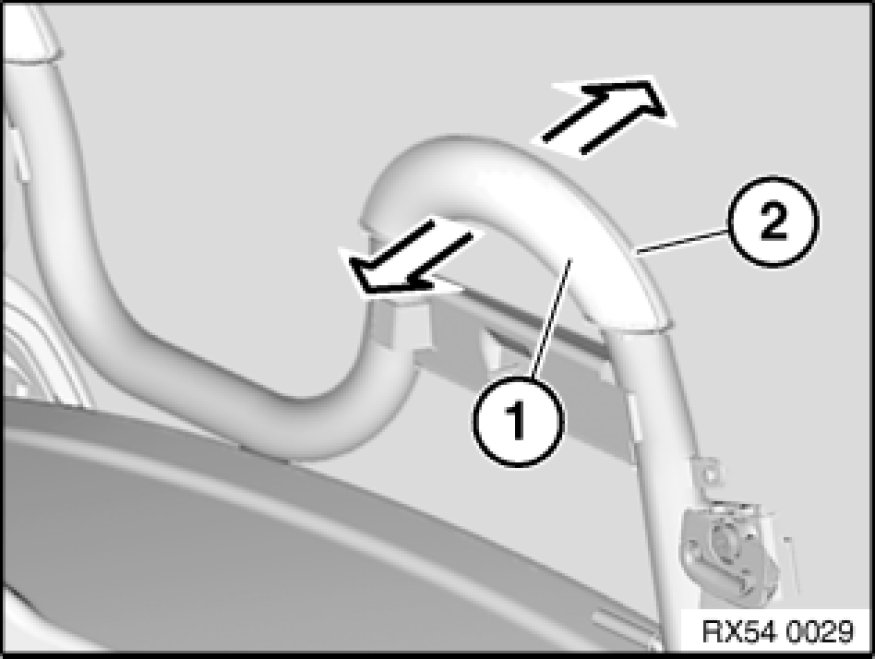

Unclip front trim (1) from rear trim (2) and remove.

Installation:
Retaining lugs must not be damaged nor must the trims be scratched. Replace trim if necessary.
