Removing and Installing / Replacing Rear Storage Compartment Holder

51 16 218 - Removing and installing / replacing rear storage compartment holder





Necessary preliminary tasks:
- Remove rear storage compartment (rear center console)





Version without center armrest:

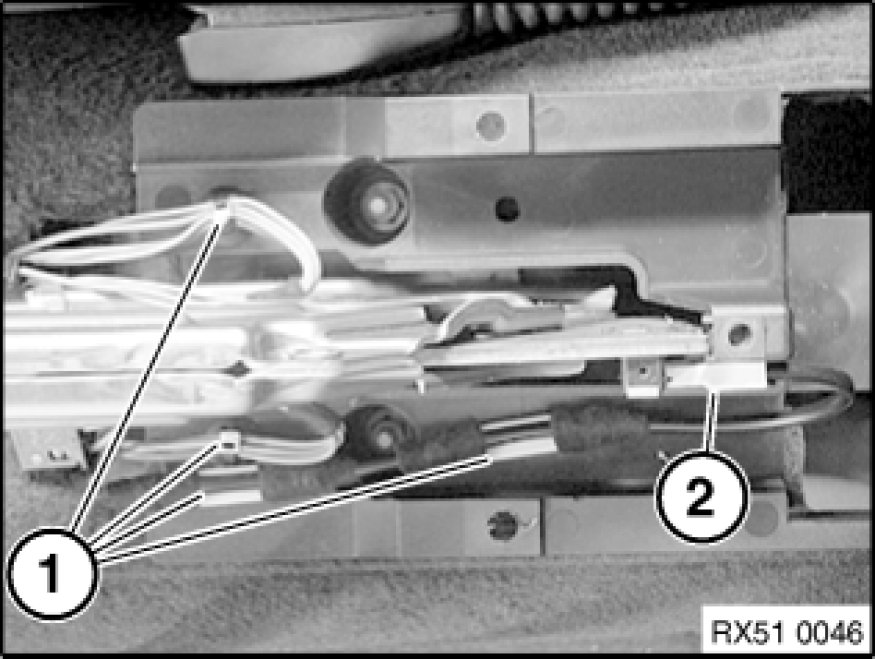

Remove clips (1).
Disconnect cable (2) of parking brake warning switch.

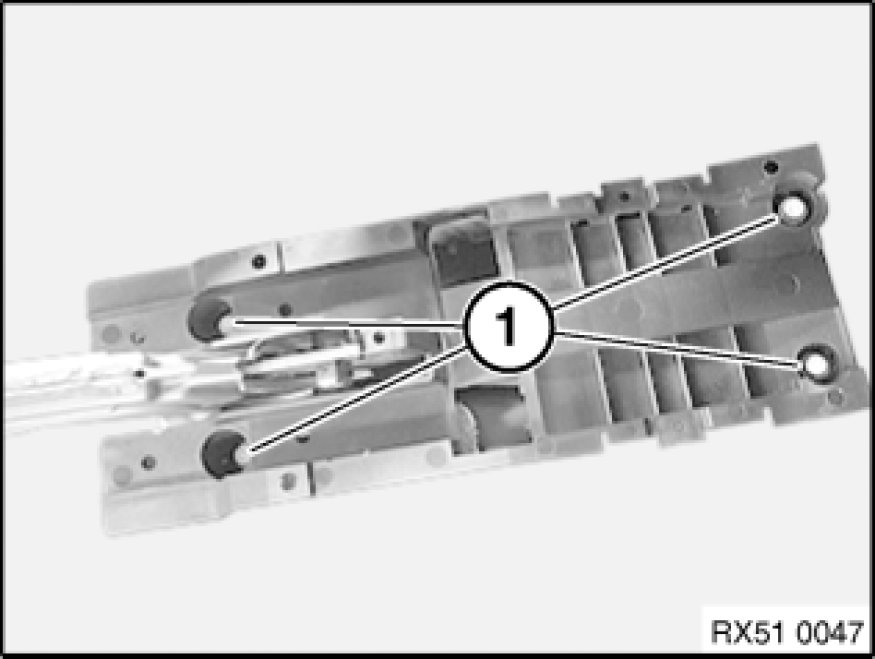

Release nuts (1) and remove holder for storage compartment.
Tightening torque 51 16 1AZ [1][2][3]51 16 Mirrors, Finishers, Ashtrays, Consoles.





Version with center armrest:

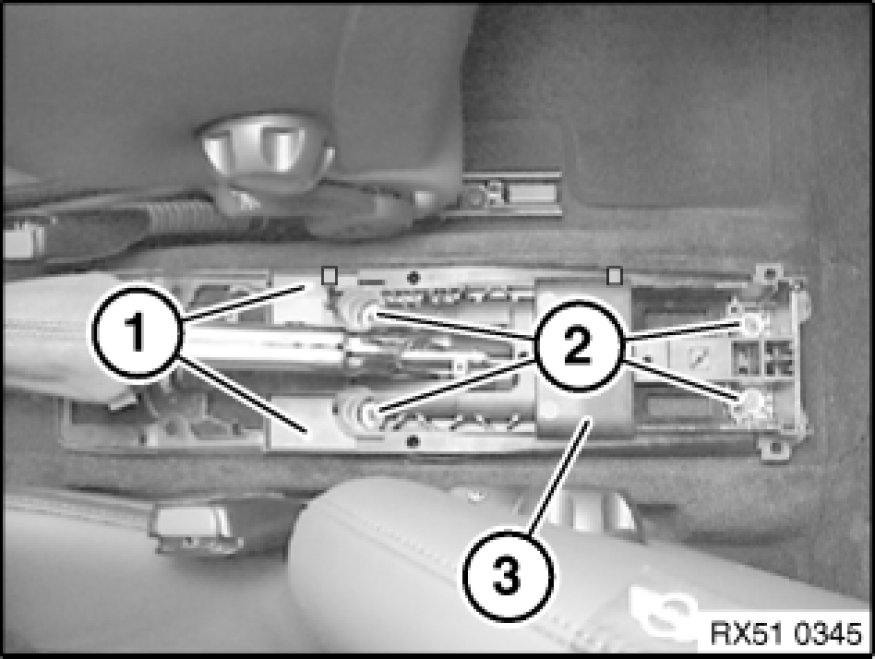

Unfasten cable tie (1).
Release nuts (2) and feed out holder (3) towards top.
Tightening torque 51 16 1AZ [1][2][3]51 16 Mirrors, Finishers, Ashtrays, Consoles.
