Removal and Replacement

41 61 000 - Removing and installing engine hood

For stripping and rigging operations, refer to texts on KSD CD (FR number 41 61 000).





Raise bonnet/hood lid.

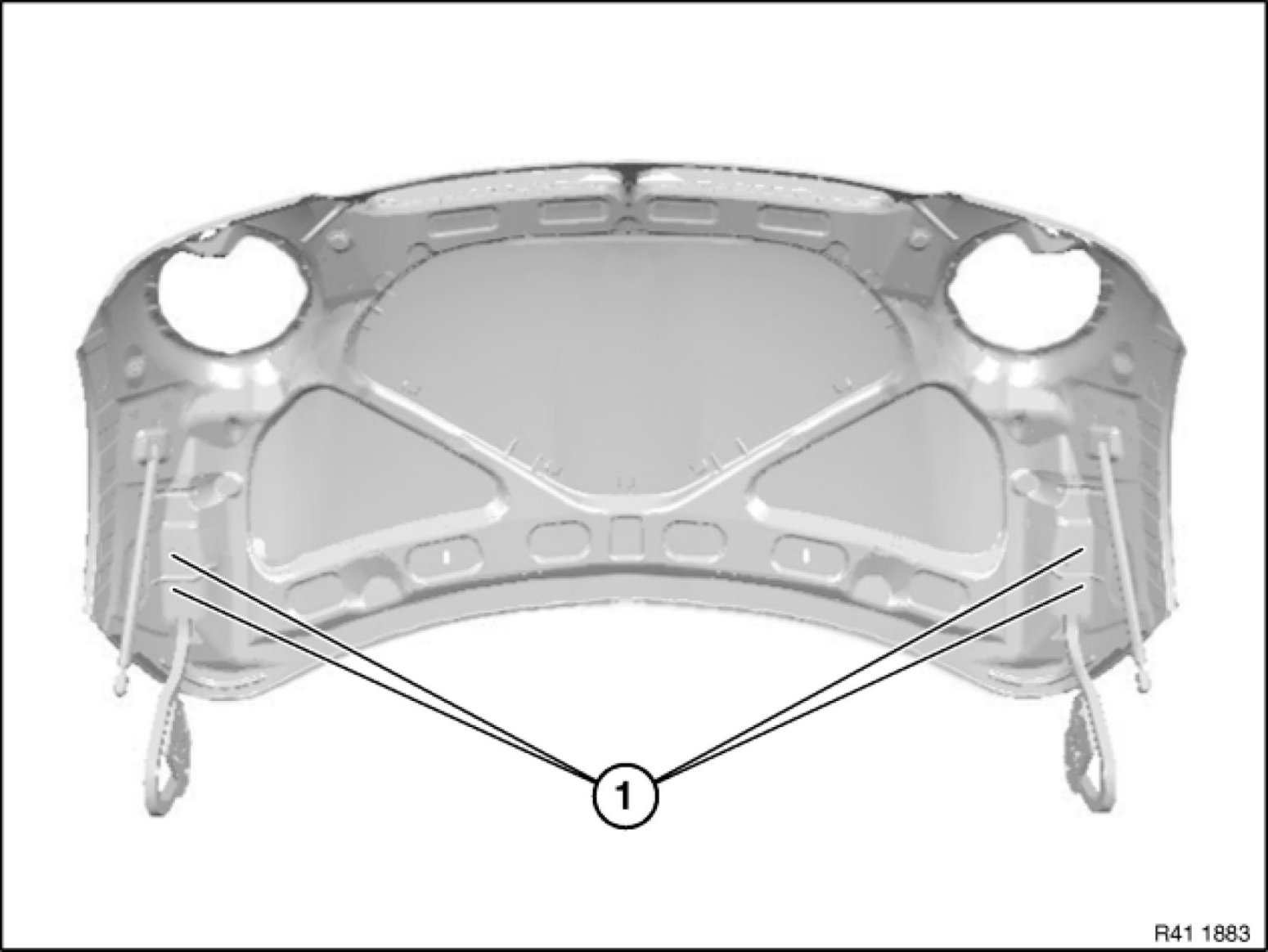

Unfasten screws (1).

Installation:
Install engine hood at screw locations to on hinge. This dispenses with adjustment to fit after installing.

If this is not possible, touch up flaws with touch-up stick and adjust engine hood to fit Adjustments.
