Radio/Stereo: Service and Repair

65 11 030 - Removing and installing/replacing radio receiver (built-in unit)





Necessary preliminary tasks:
- Remove cover strips for front center console 51 16 198 Removing/Installing Or Replacing Trim Between Front Center Console And Instrument Panel

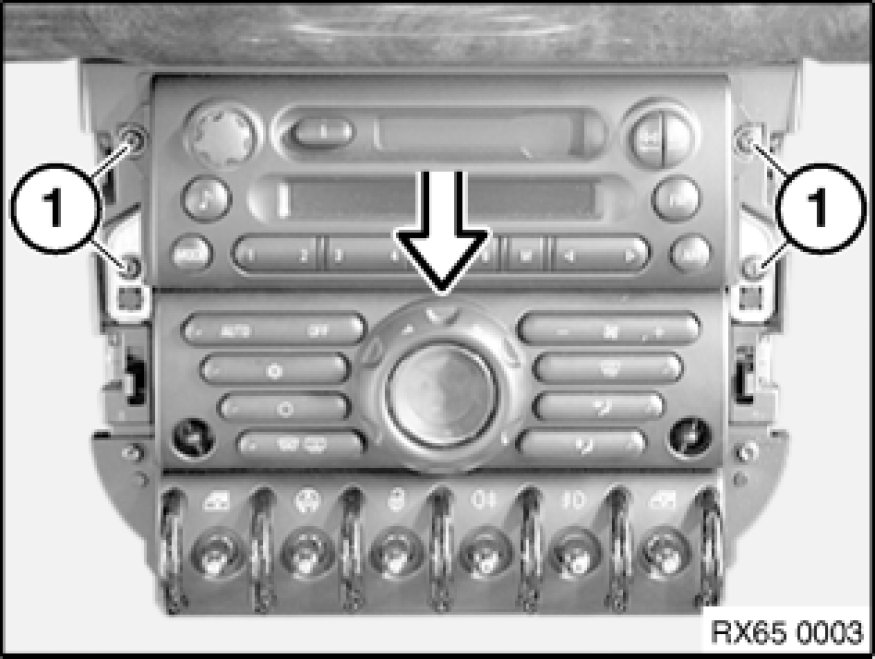

Release screws (1) and pull radio receiver back.

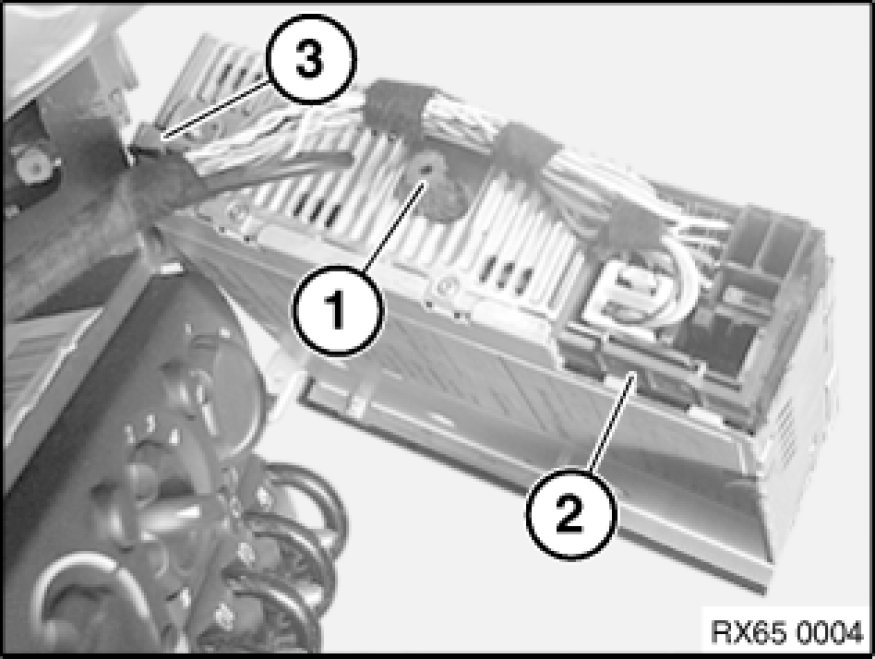

Remove holder (1) for radio wiring harness.
Unfasten plug connection (2) and disconnect.
Disconnect antenna plug (3) and remove radio receiver.
