Wiper Motor: Service and Repair

Removing And Installing/Replacing Rear Window Wiper Motor

Remove rear wiper arm.

Remove inside tailgate trim.

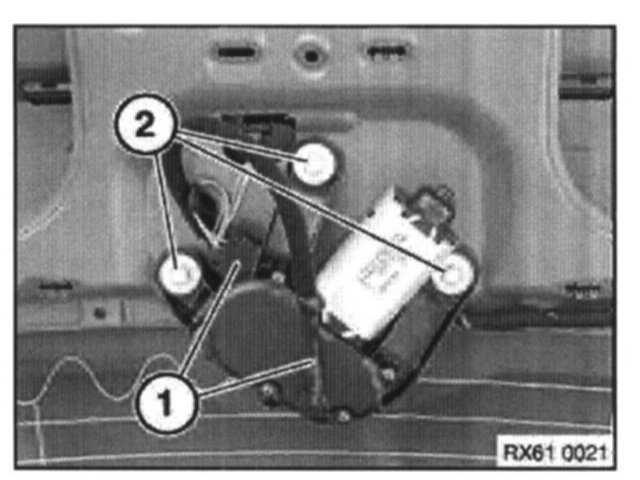

Disconnect connectors (1) and remove screws (2).
Remove rear window wiper motor.

Install hint:
Tightening Torques 10 Nm.


NOTE: Inspect wiper motor spindle grommet for any signs of damage.
