Replacing Wiper Arm on Rear Window

Removing And Installing/Replacing Wiper Arm On Rear Window

Special tools required:
- 61 2 100

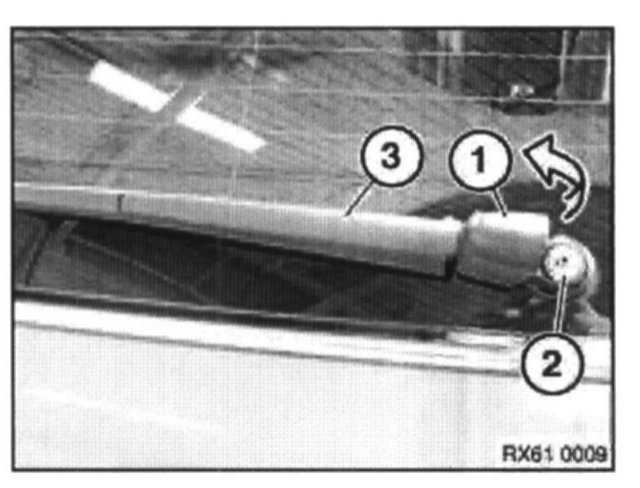

Turn combined protective cap/washer jet assembly (1) to expose nut, release nut (2) and remove wiper arm (3).
Use special tool 61 2 100 if necessary.

Install hint:
Tightening torque 13 Nm.

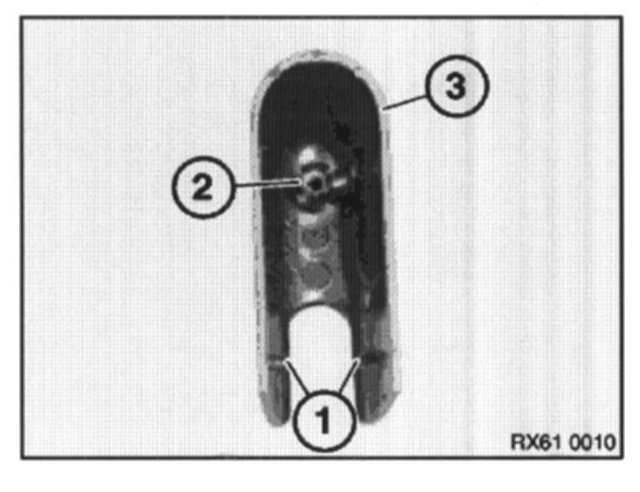

Catches (1) and washer jet supply hole (2) of protective cap (3) must not be damaged.







Install hint:
Wiper motor must be in parked position.

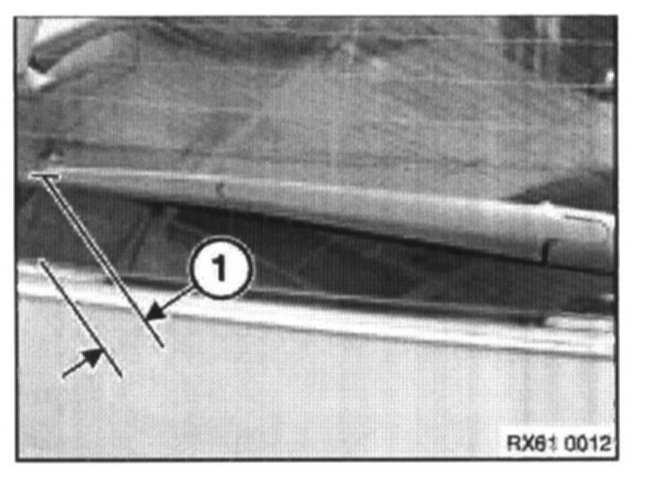

Adjust distance (1) of wiper arm and rear window edge.
(1) 44 mm
