Windshield Washer Spray Nozzle: Service and Repair

Removing And Installing/Replacing Left Or Right Windshield Washer Spray Nozzles

Partially release bonnet soundproofing pad.

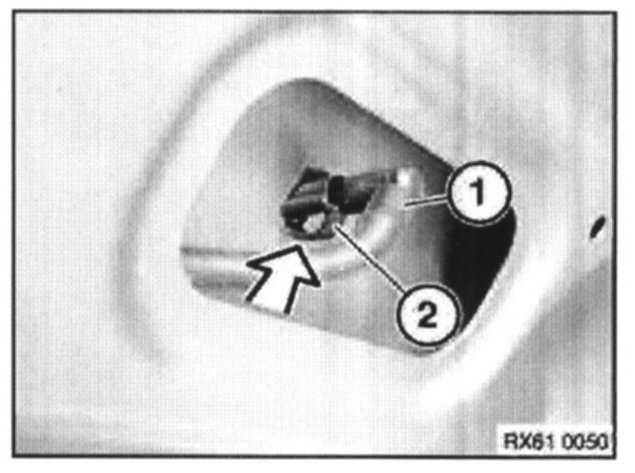

Disconnect hose (1).
Disconnect heated spray nozzle connector (if fitted).
Compress retainer (2) and remove spray nozzle.
