Removing and Installing/Replacing Window Cavity Cover Strip on Inner Front Door



51 21 330 Removing And Installing/Replacing Window Cavity Inner Strip On Outer Side Of Front Door







Remove front door trim panel.

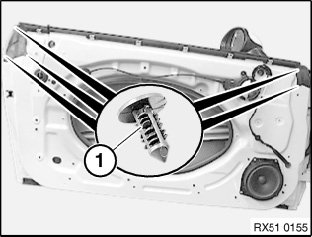

Remove clips (1).

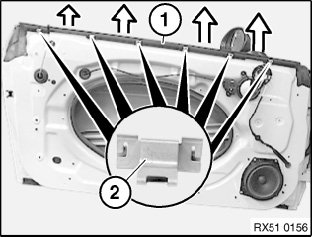

Remove window cavity cover strip (1); begin at front end of door.

Installation: Replace damaged clips (2) if necessary.
