Flywheel: Service and Repair

Removing And Installing Or Replacing Flywheel (COOPER S)
Special tools required:
^ 11 8 460

Remove clutch.

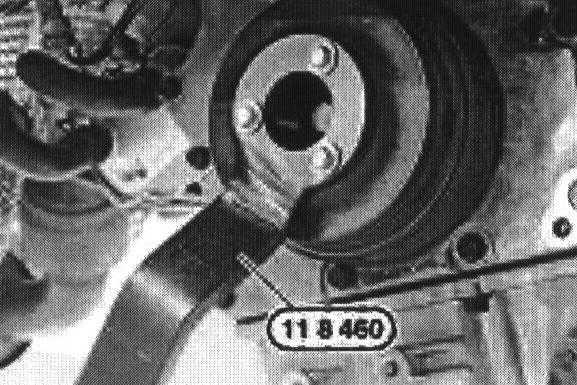

Fit special tool 11 8 460 to retain crankshaft pulley.

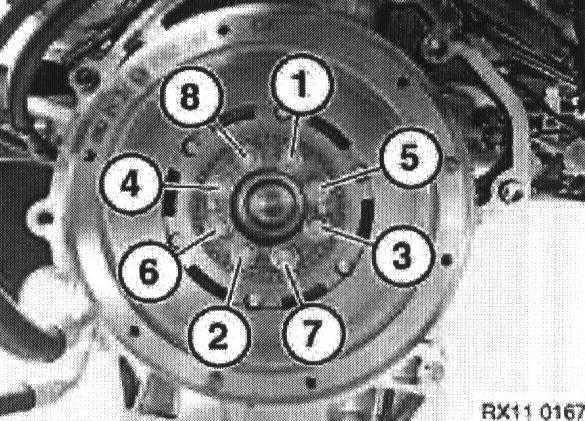

Slacken bolts in sequence (8-1 ) and remove flywheel.

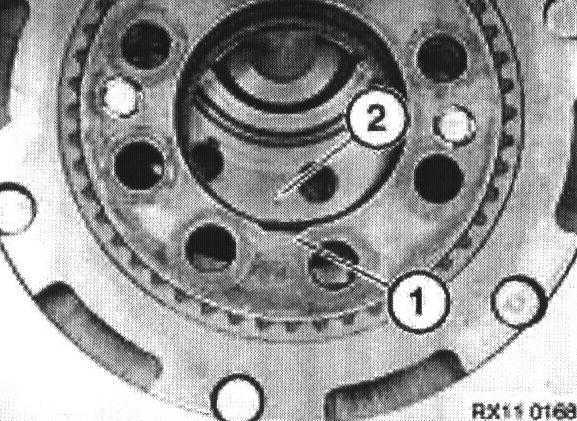

Align flywheel location mark (1) with crankshaft location mark (2)

Note: Flywheel bolts must be replaced.





Tighten bolts in sequence (1-8).
Dual-mas flywheel to crankshaft
M10 90 Nm
