Rear

Replacing Stabilizer Link For Stabilizer (Left Or Right)

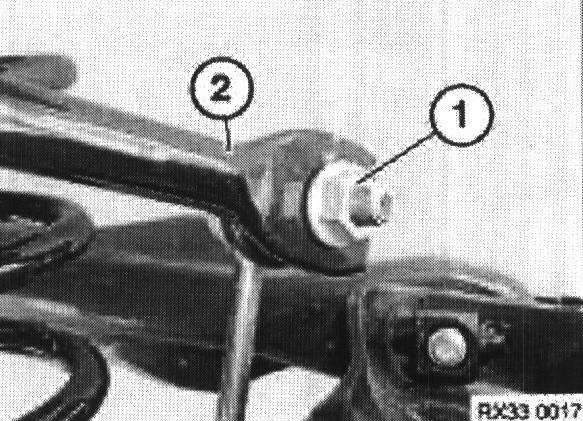

Release top stabilizer link (1) from stabilizer bar (2).
Rear anti-roll bar link to anti-roll bar
M10 x 1.5 nut 56 Nm
Note: Use once only.

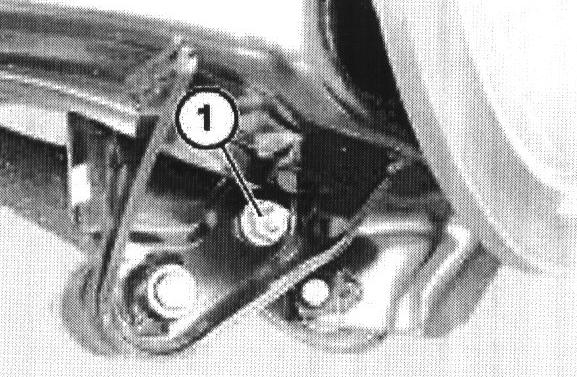

Release stabilizer link (1) from lower trailing arm.
Rear anti-roll bar to trailing arm
M10 x 1.5 nut 56 Nm
Note: Use once only.

Install hint:
Replace self-locking nut.
