Removing and Installing or Replacing Steering-Lock Cylinder


Removing And Installing Or Replacing Steering-Lock Cylinder
Special Tools Required:
^ 32 3 110

Disconnect battery.


Remove ring antenna.






With ignition key, turn lock barrel to position "R".

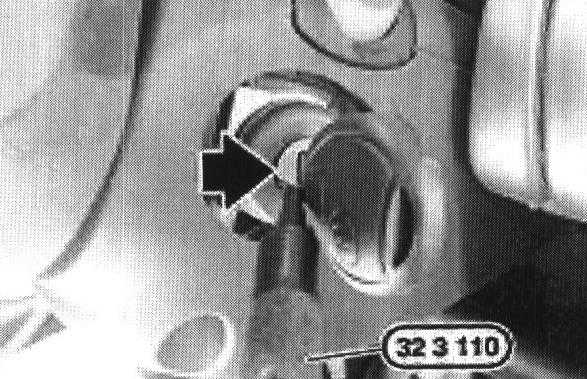

Press special tool 32 3 110 into locking cylinder hole and remove locking cylinder.

Note: If necessary, turn special tool in hole.
