Starter Solenoid: Service and Repair

Replacing Solenoid Switch

Turn off ignition.
Remove starter motor.







Release nut (1).
Remove cable lug (2).


CAUTION!
Do not turn cable lug (2) while tightening down-risk of short circuit to starter motor housing.
Tightening torque, 85 Nm.







Release screws (1).

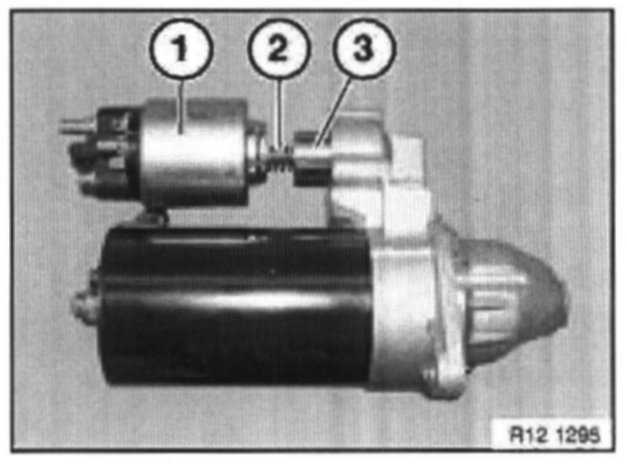

Remove solenoid switch (1) and spring (2).
Unhook pin (3).

Installation:
Check pin (3) for wear and apply grease.
