Replacing Rear Ultrasonic Transducer For Park Distance Control




Removing And Installing/Replacing A Rear Ultrasonic Transducer (Park Distance Control)

Remove rear bumper trim.

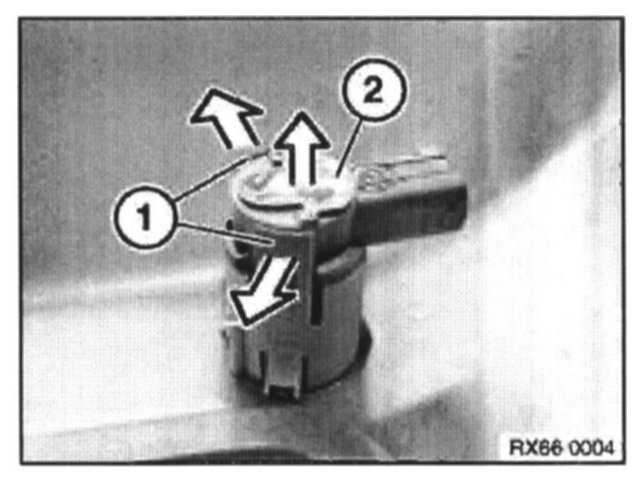

Release transducer from mounting sleeve by levering clips (1) in direction shown.
Remove transducer (2) from mounting sleeve in direction shown.
