Replacing Front Seat Belts

Removing And Installing Or Replacing Front Left Or Right Seat Belt

Remove rear trim.

Remove door pillar trim.







Remove bolt and remove seat belt from height adjuster.

Install hint:
Tightening torque 32 Nm.

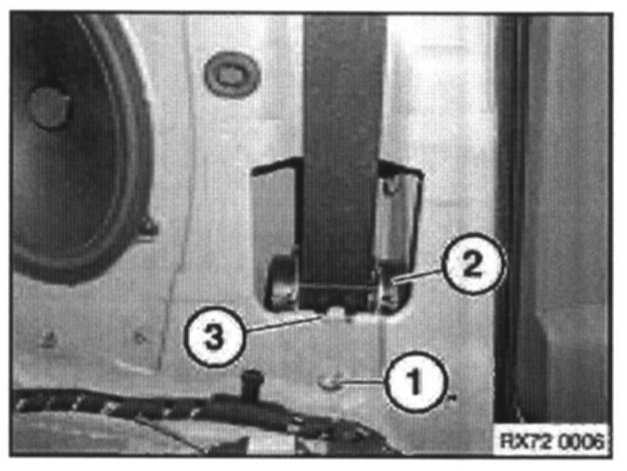

Remove bolt (1).

Install hint:
Tightening torque 29 Nm.
Release and remove reel (2).

Install hint:
Ensure reel is correctly located (3).
