Seat Belt Height Adjuster: Service and Repair

Removing And Installing Or Replacing Left Or Right Seat Belt Adjuster

Release door pillar trim.

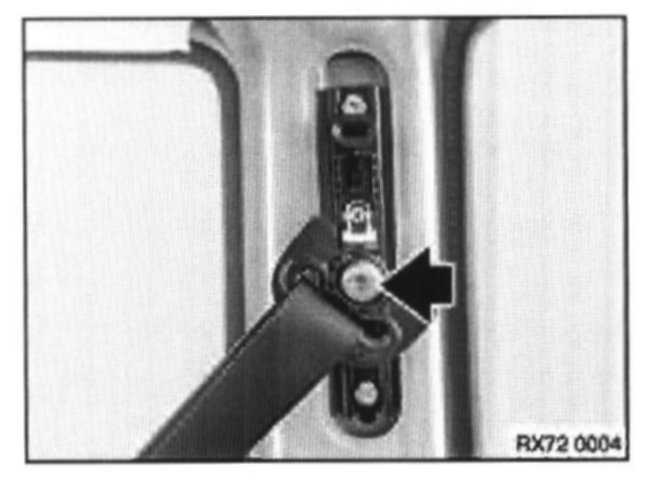

Remove bolt and remove seat belt from height adjuster.

Install hint:
Tightening torque 32 Nm.

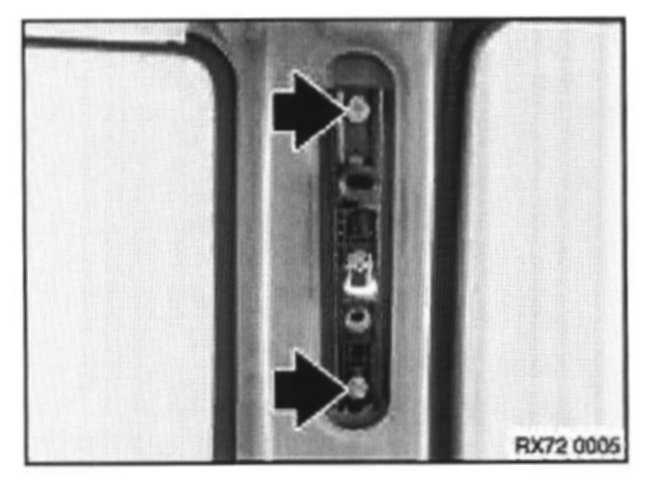

Remove bolts and remove seat belt height adjuster.

Install hint:
Tightening torque 25 Nm.
