Replacing Power Steering Return Pipe

Replacing Power Steering Return Pipe

Recycling:
Observe country-specific waste disposal regulations.

Draw hydraulic fluid out of tank (do not reuse). Remove and install ear clips.

Bleed power steering.

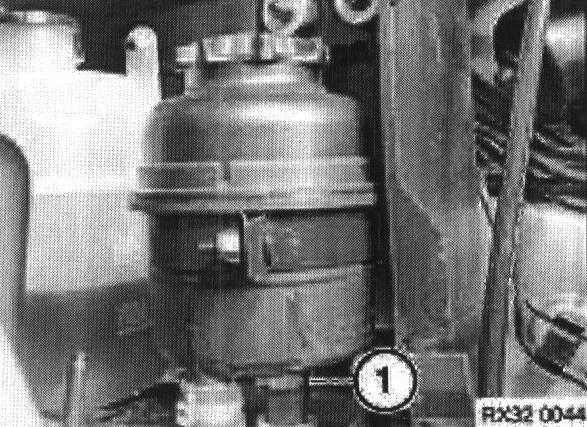

Release pipe from PAS supply tank (1).





Remove low pressure banjo bolt (1).

Plug rack and catch any oil from pipe in suitable container.

Remove pipe.
High pressure pipe to steering gear
M14 Banjo Bolt 34 Nm
