Replacing Power Steering High Pressure Pipe

Replacing Power Steering Pressure Pipe
Recycling:
Observe country-specific waste disposal regulations.

Draw hydraulic fluid out of tank (do not reuse).





Remove bolt (1) from power steering pump and remove pipe.

Plug pump and catch any oil from pipe in suitable container.

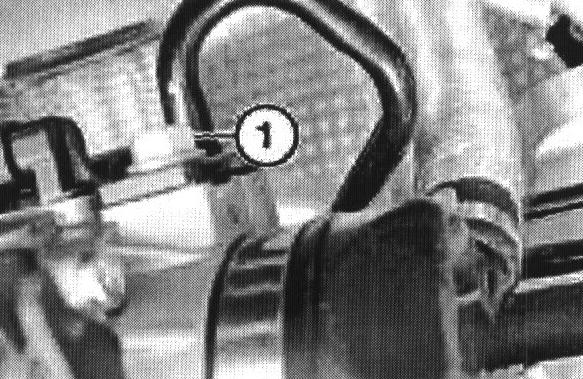

High pressure pipe to power pack
M8 x 1.25 x 20 Screw 10 Nm

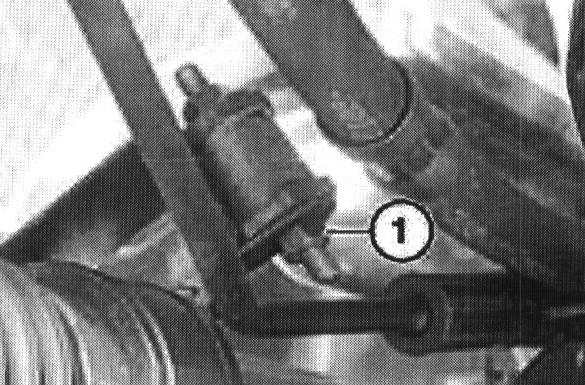

Remove nut (1) securing pipe to rubber mount.

High pressure pipe to rubber mount
M6 8 Nm

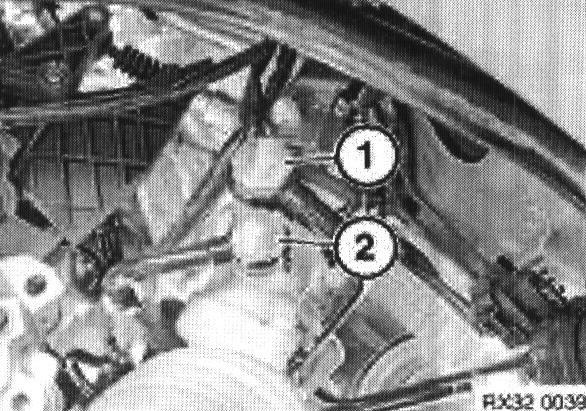

Remove low pressure banjo bolt (1) to gain access to high pressure banjo bolt (2).

Remove pipe from vehicle.

High pressure pipe to steering gear
M14 Banjo 34 Nm

Install hint:
Bleed power steering.
