Replacing Bulb For Auxiliary Turn Indicator Light - Front

Replacing Bulb For Auxiliary Turn Indicator Light, Front Left Or Right

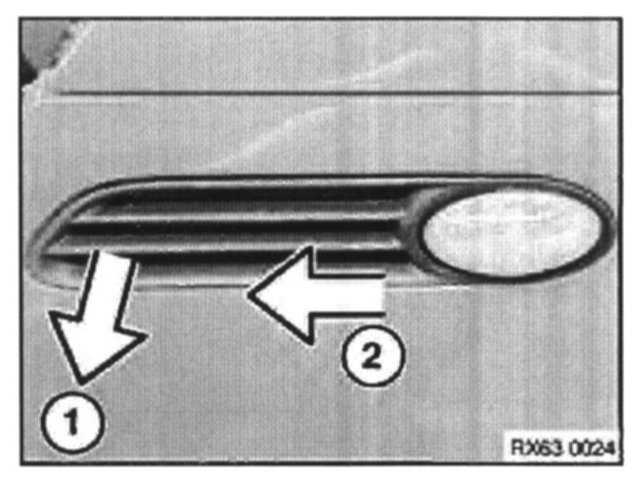

Lever out front edge of finisher (1) and slide the complete finisher in a forward direction (2) to release from body aperture.

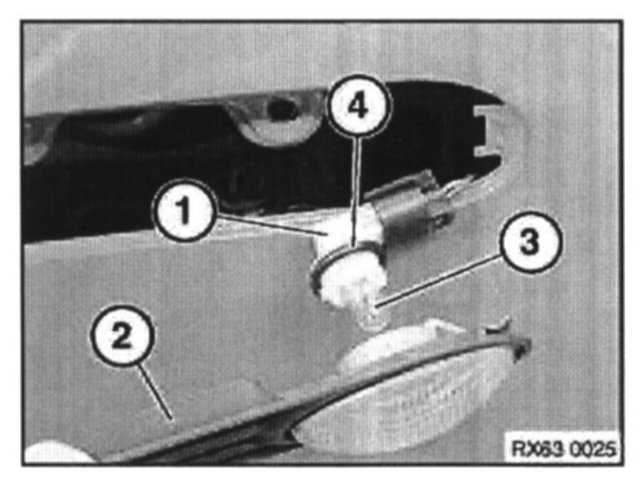

Rotate bulb hold anti-clockwise (1) and remove finisher/light assembly (2).
Remove bulb from holder (3).

Install hint:
Do not touch glass part of bulb with bare fingers. Only touch bulb on base or with a clean cloth or packaging of light bulb.

Install hint:
Prior to refitting bulb holder to finisher/light assembly, ensure the seal (4) is seated correctly and is clean.


NOTE: For new bulb specification, See Turn Signals/Specifications.
