Headlamp Alignment Switch: Service and Repair

Removing And Installing/Replacing Switch For Vertical Aim Control


CAUTION!
Do not use excessive force for following operation.

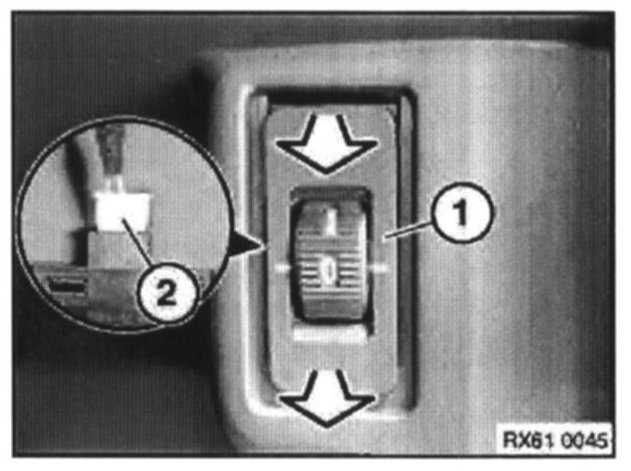

Lever switch for headlight vertical aim control (1) out.
Disconnect connector (2).
