License Plate Lamp: Service and Repair

Replacing Bulb For Left Or Right License-plate Light


NOTE: The following procedure may be easier to perform with the tailgate held partially open.

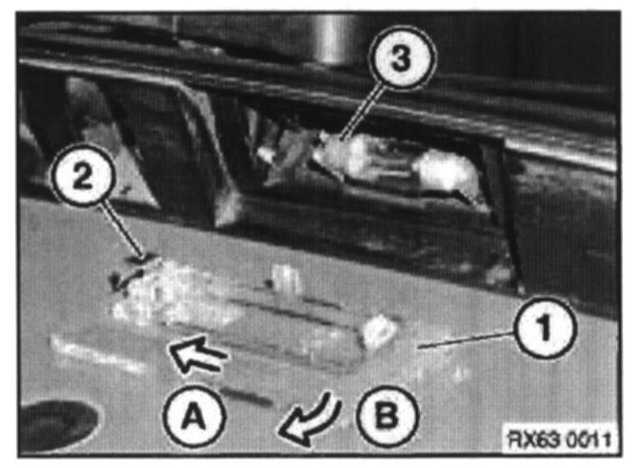

Lever out lens (1) in the direction (A), and then in direction (B) and remove.


NOTE:
Direction (A) is determined by the clip position (2).
Always lever lens toward this clip as removal is made easier.


Remove bulb (3).

Install hint:
Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.


NOTE: For new bulb specification, See License Plate Lamp/Specifications.
