Replacing Bulb For Left or Right Xenon Headlight (Up to 07/04)

63 99 078 - Replacing bulb for left or right xenon headlight (up to 07/04)






Warning!
Follow instructions for handling light bulbs (exterior lights). Instructions For Handling Light Bulbs (Exterior Lights)






Note:
For purposes of clarity, illustration shows removed headlight.

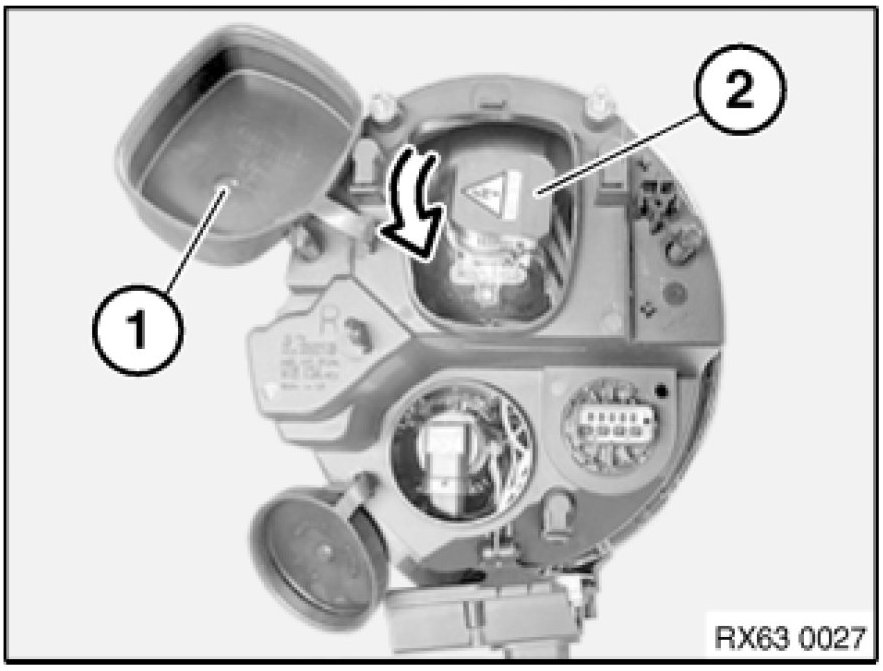

Open cover (1) of bulb for xenon headlight.
Turn ignition unit (2) in direction of arrow and remove.

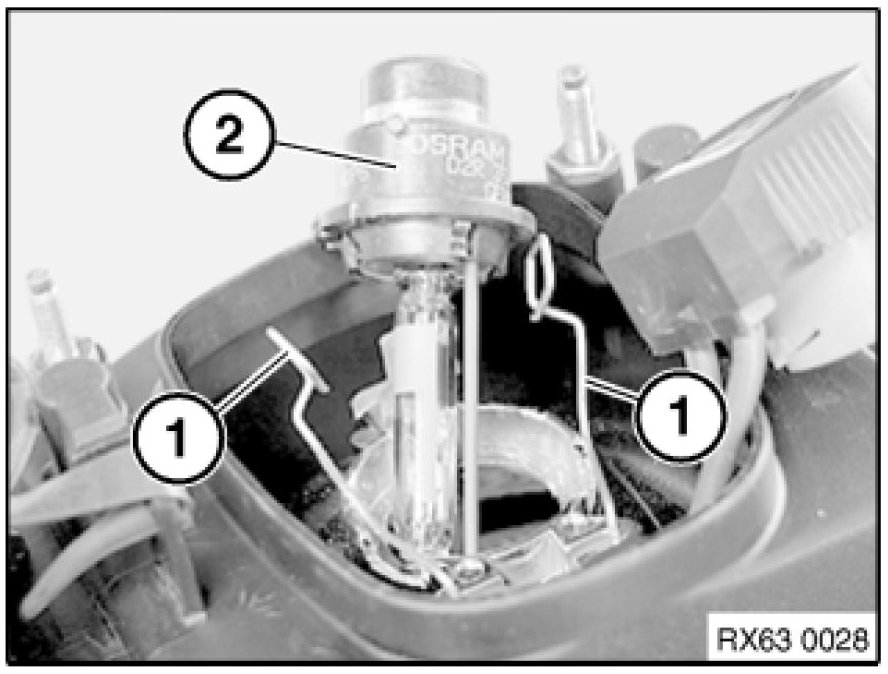

Release lock (1) and remove bulb for xenon headlight (2).





Installation Note:
Note type of bulb. Specifications
