Home >> Mini >> 2006 >> Cooper S (R53) L4-1.6L SC (W11) >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Service and Repair >> Replacing Footwell Light

Replacing Footwell Light




Removing And Installing/Replacing Footwell Light

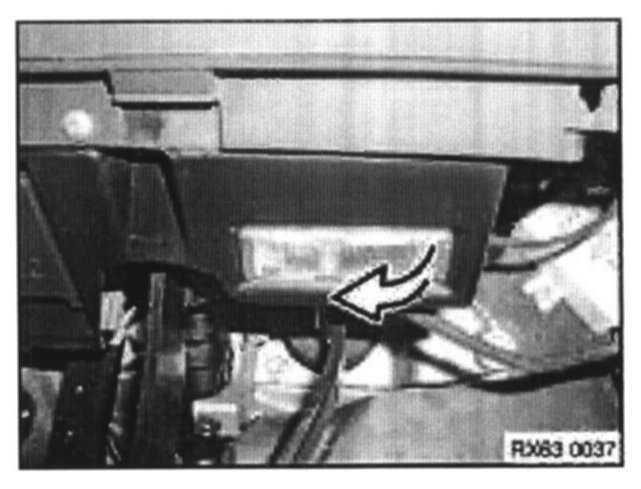

Release footwell light.

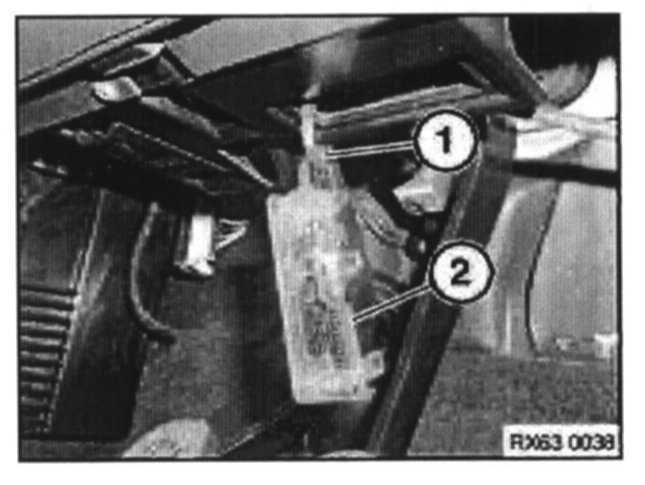

Disconnect connector (1) and remove footwell light (2).
