Timing Cover: Service and Repair

Removing And Installing, Sealing/replacing Timing Case Cover (COOPER S)

Remove alternator drive belt tensioner. Service and Repair

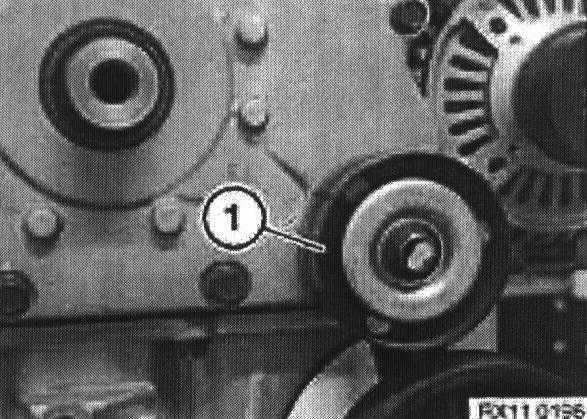

Remove idler pulley (1) from front timing cover.
Deflection cover to timing case cover
M8 45 Nm





Remove timing cover in sequence (11-1).

Install hint:
Align oil pump rotor flats with flats on crankshaft as you install the timing case cover to the cylinder block.

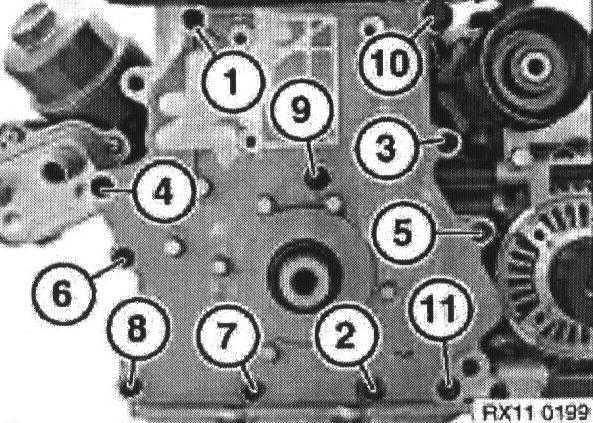

Tighten timing case cover in sequence (1-11).
Timing case cover to crankcase cover
M6 12 Nm

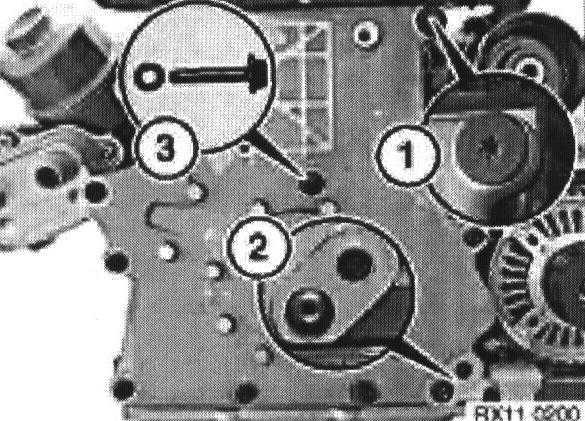

Note location of the Torx shoulder bolt (1), Torx round head bolt (2) and bolt with seal (3).

Install hint:
Clean sealing surface.
Replace seal on bolt (3) and lubricate with clean engine oil.

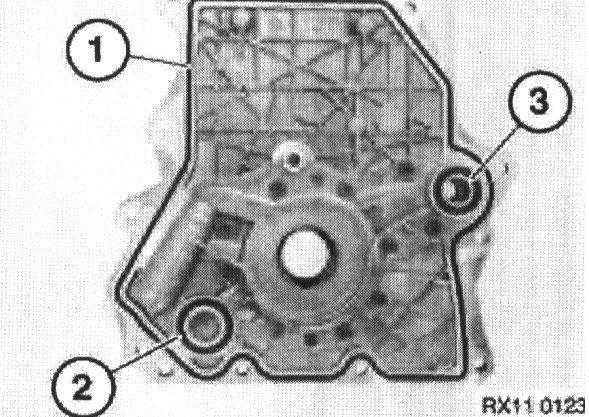

Remove timing case cover seals.
1. Cover seal.
2. Oil pump inlet seal.
3. Oil pump outlet seal.

Install hint:
Clean all sealing surfaces and install new seals.





Apply a 3 mm bead of Loctite RTV 5999 sealer to cylinder block/bearing ladder joint (1).

Prime oil pump before installation by filling rotor cavity with engine oil.

Start engine and check for leaks.
