Fan Shroud: Service and Repair

Replacing Fan Cowl

Remove radiator.

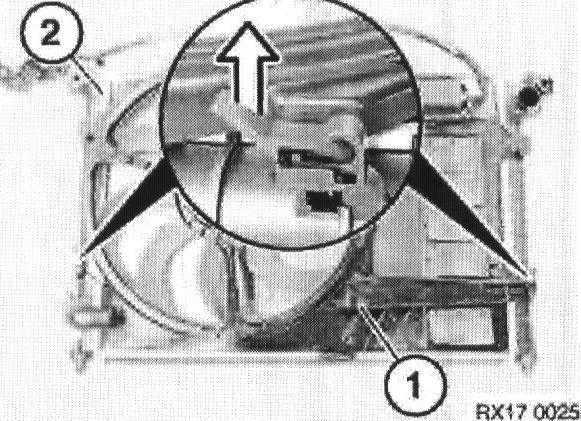

Unclip fan housing (1) from radiator (2) and move fan housing to the top.

Remove fan housing.

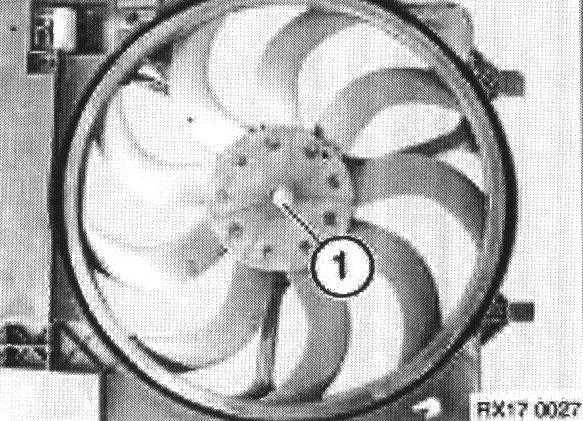

Remove fan blade retaining nut (1).

Note: the fan blade retaining nut has a left hand thread.
Fan blade to motor retaining nut 6 Nm

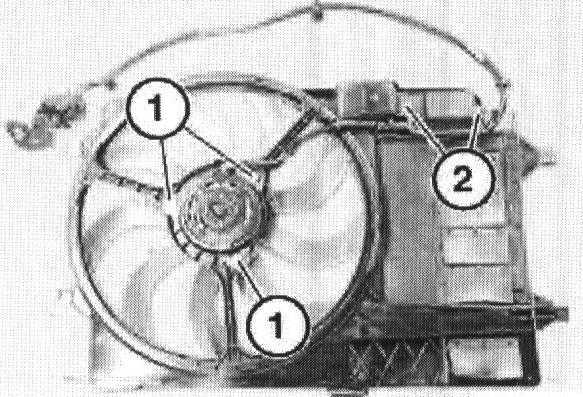

Remove fan motor retaining bolts (1) and remove resistor pack retaining bolts (2).

Remove fan motor and resistor pack and remove fan cowl.

Note harness routing.
Motor to housing retaining bolts 5 Nm
