Parking Brake Actuator: Service and Repair

Replacing parking brake lever

Remove centre console.

Remove centre console mounting.





Slacken handbrake cable adjuster nut (1).





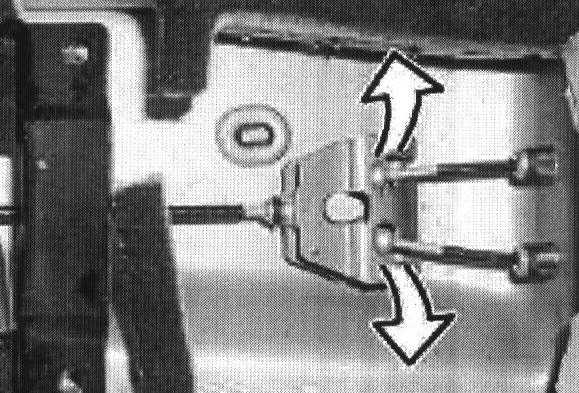

Disconnect ends of handbrake Bowden cable from compensator.

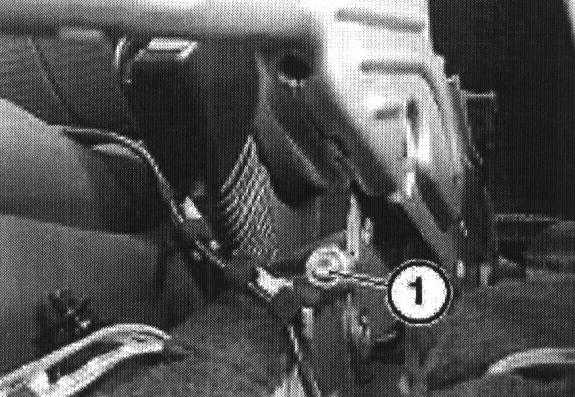

Remove bolts securing handbrake to body (1).
Handbrake lever to body
M8 25 Nm

Remove bracket (2).

Disconnect harness connection to handbrake switch.
