Trunk / Liftgate Weatherstrip: Service and Repair

51 71 360 Removing And Installing/Replacing Seal On Tailgate Aperture

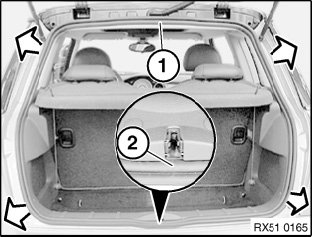

Remove seal (1).

Install hint:
Ensure seal joint (2) is located in position shown.
Ensure seal is correctly located onto adjacent trim panels.
