Replacing Seal For Glass Sliding/Tilting Sunroof Lid



54 12 117 Replacing Seal For Glass Sliding/Tilting Sunroof Lid

Remove sunroof glass lid.

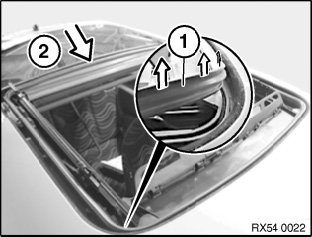

Remove seal (1) from sunroof assembly.

Installation:
Begin installation at rear center (2).
Do not pull seal too tightly during installation.
