Removing and Installing/Replacing Housing on Left or Right Door Mirror

51 16 040 Removing And Installing/Replacing Housing On Left Or Right Door Mirror

Necessary preliminary tasks:
- Remove mirror glass

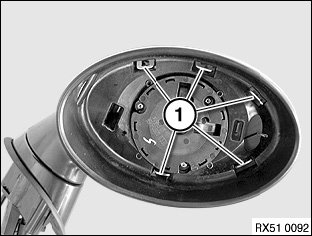

Release catches (1) starting at bottom and remove cover.

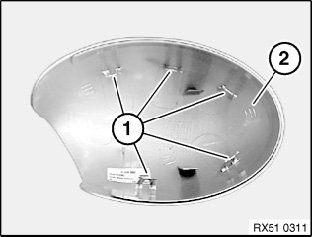

Installation: Catches (1) on housing (2) must not be damaged.
